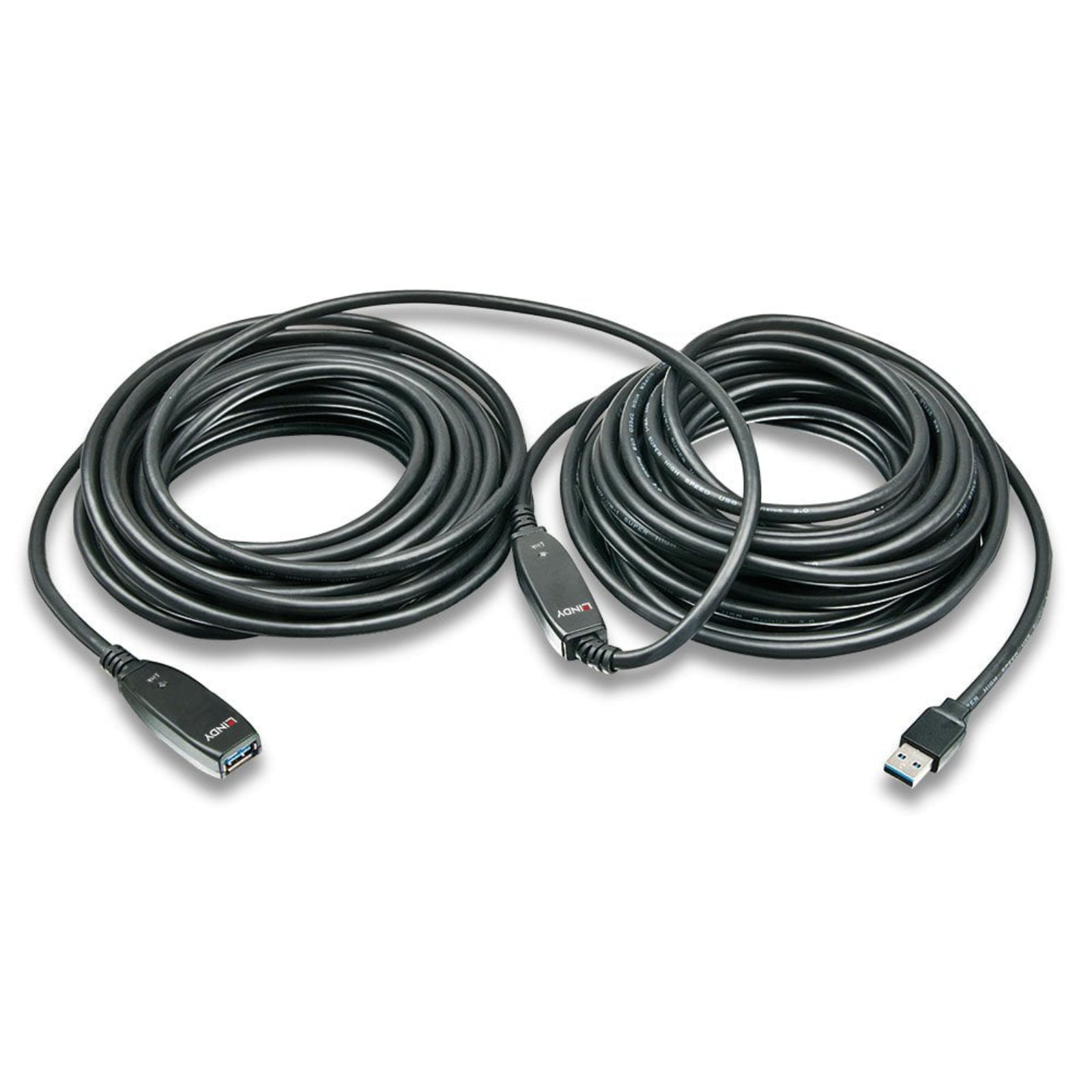

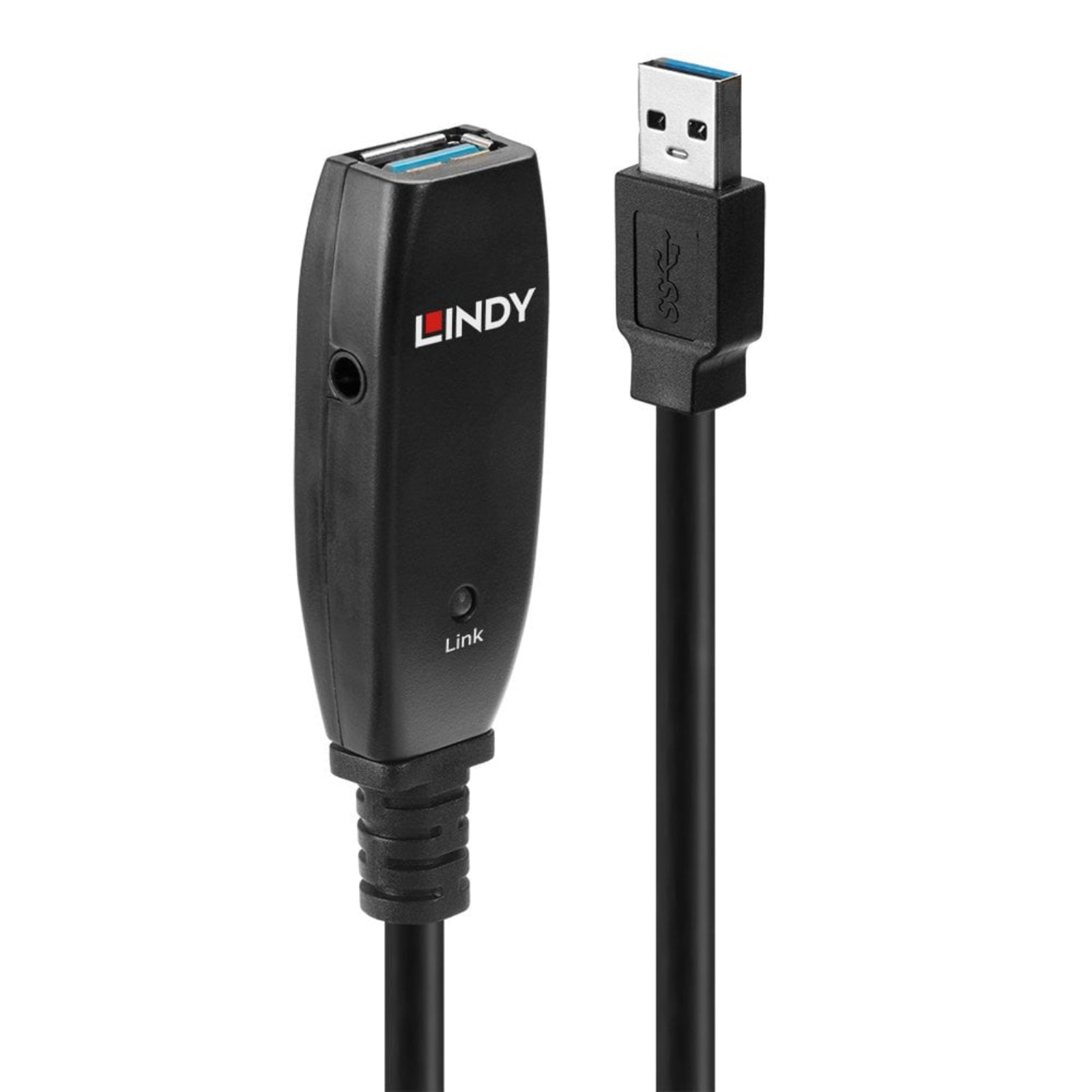

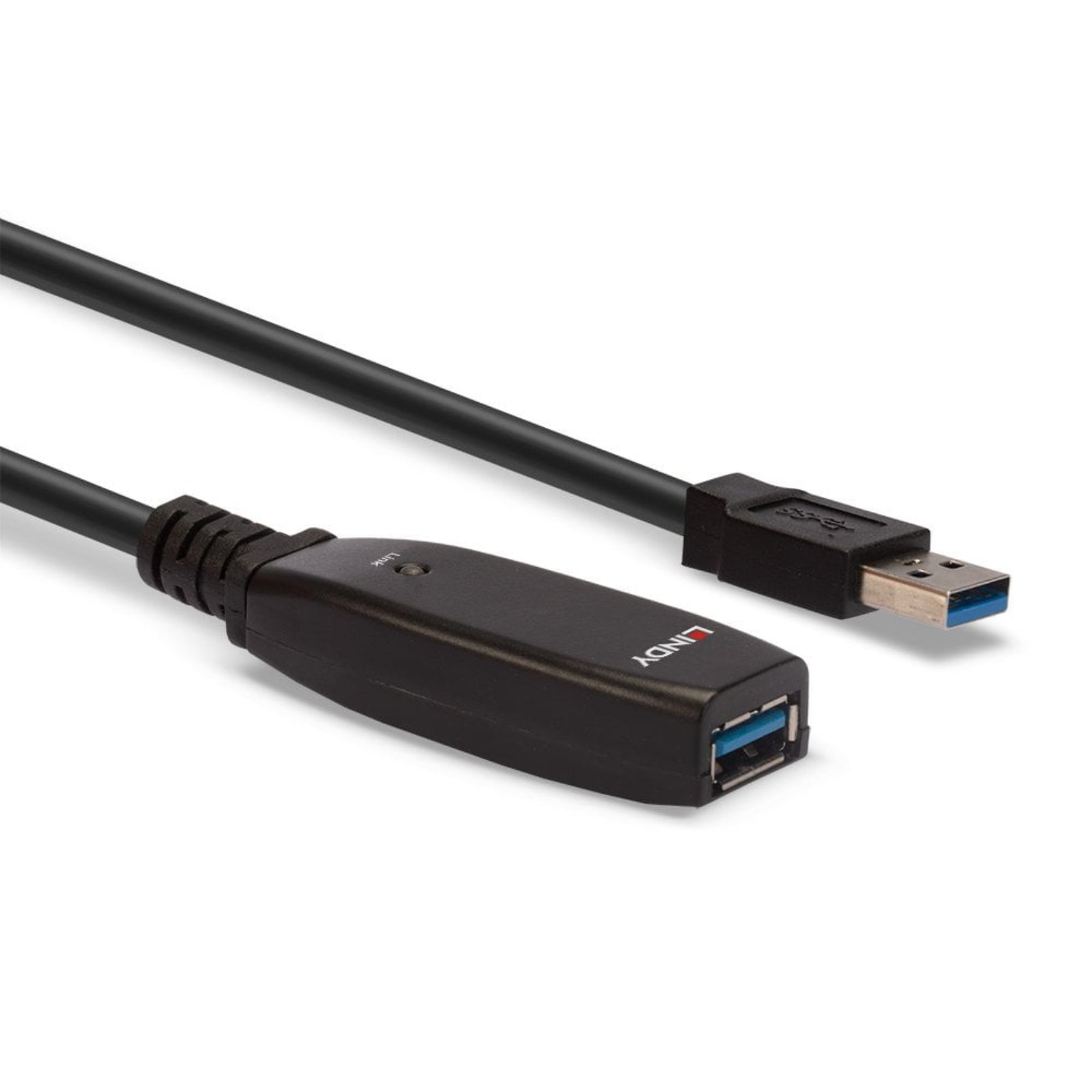

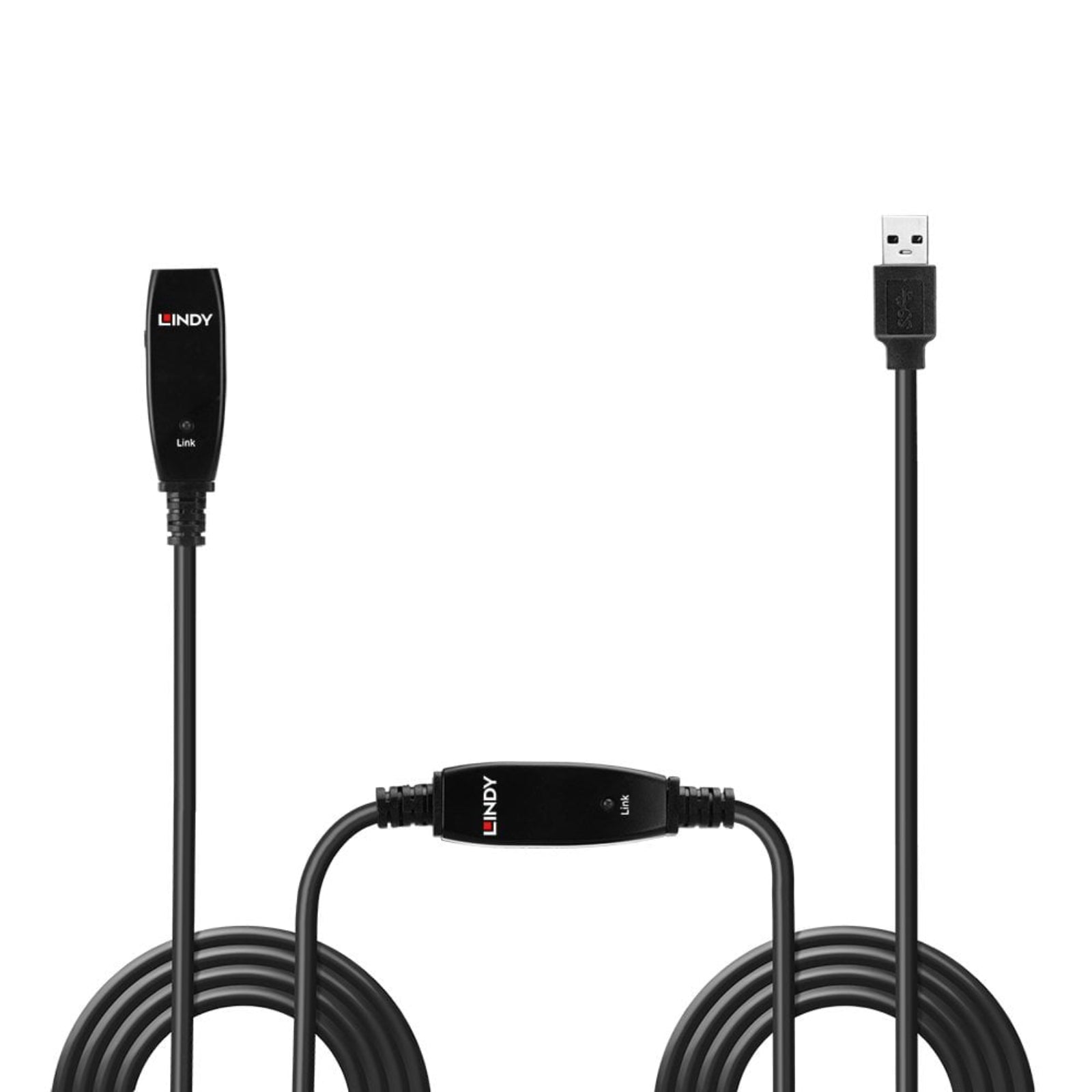

Lindy 15m USB 3.0 Active Extension Cable Slim with Repeater 5Gbps (49.2ft) 43322

Lindy 15m USB 3.0 Active Extension Cable Slim with Repeater 5Gbps (49.2ft) 43322

Condition: This item is brand new and unused, supplied in the original Lindy branded packaging.

Part/Model Number: 43322

Warranty: This item is sold with the Manufacturer warranty.

Item details/specification.

The Lindy USB 3.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

Connectors
Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 3.5/1.35mm DC Connector
Housing Material: Plastic
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB A Male: 16x41x9.5mm (0.63x1.61x0.37in)
USB A Female: 22x61x13mm (0.87x2.4x0.51in)
Repeater: 22x61x13mm (0.87x2.4x0.51in)

Cable construction
Length: 15m (49.21ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jack Diameter: 7mm (0.28in)
Jack Material: ABS, PVC
Conductor Material: OFC
Conductor Gauge: 22+25+28AWG
Shielding: Aluminium foil and braid

Specifications
Supported Bandwidth: 5 Gbps
Nominal Attenuation
Minimum Bend Radius: 70mm (2.76in)
Maximum Tensile Load: 60P
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.0

Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 324x335mm (12.76x13.19in)
Net Weight: 0.98kg (2.16lb)
Gross Weight: 1kg (2.2lb)
Certificated: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents
USB 3.0 Active Extension 15m
Lindy Manual

Purchasing information
No.43322
EAN:4002888433228
