Aruba Networks AP-135 3x3 MIMO Dual Radio Wireless Access Point 802.11a/b/g/n (Used)

Regular price £10.80
Regular price Sale price £10.80
Including VAT

Item Condition: Used

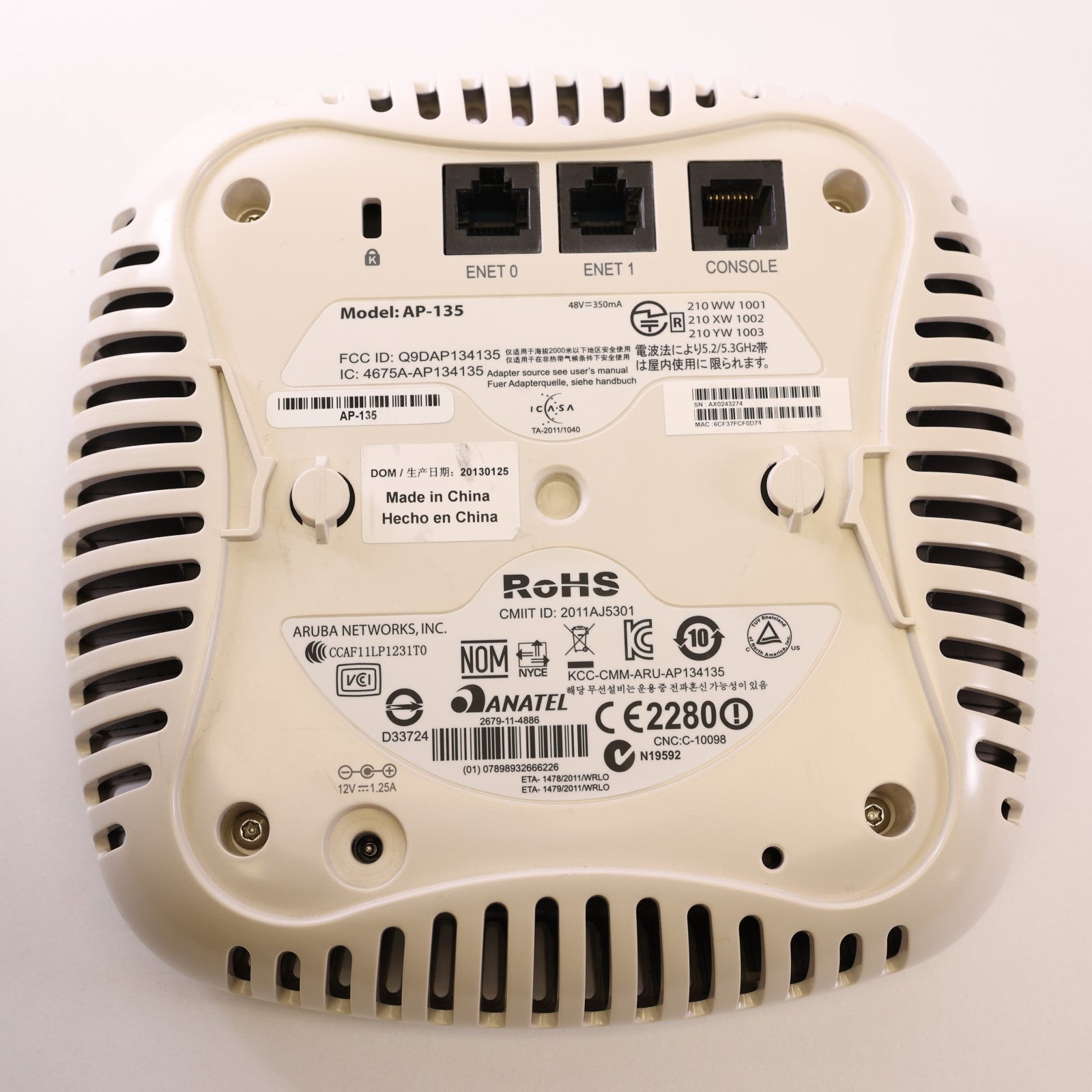

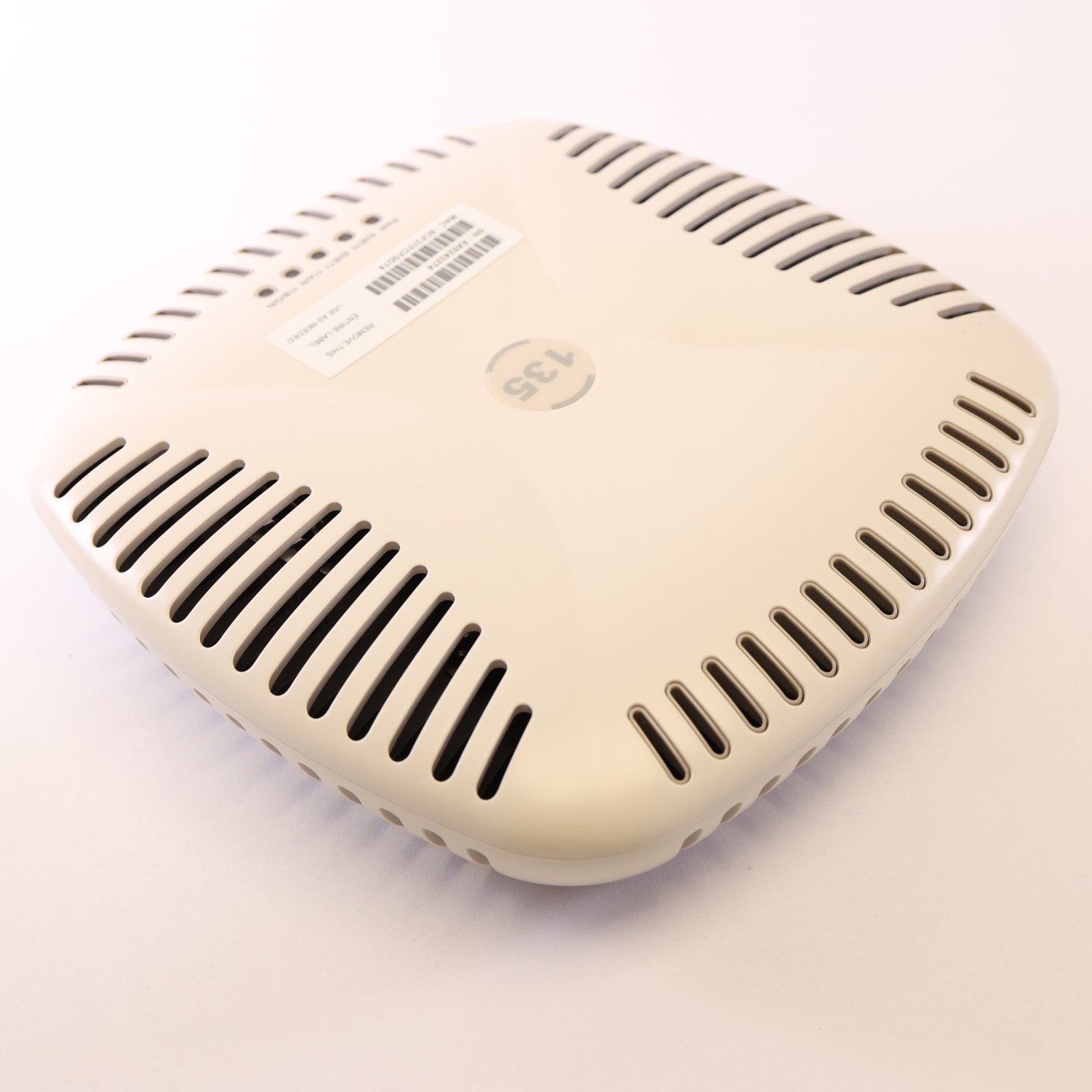

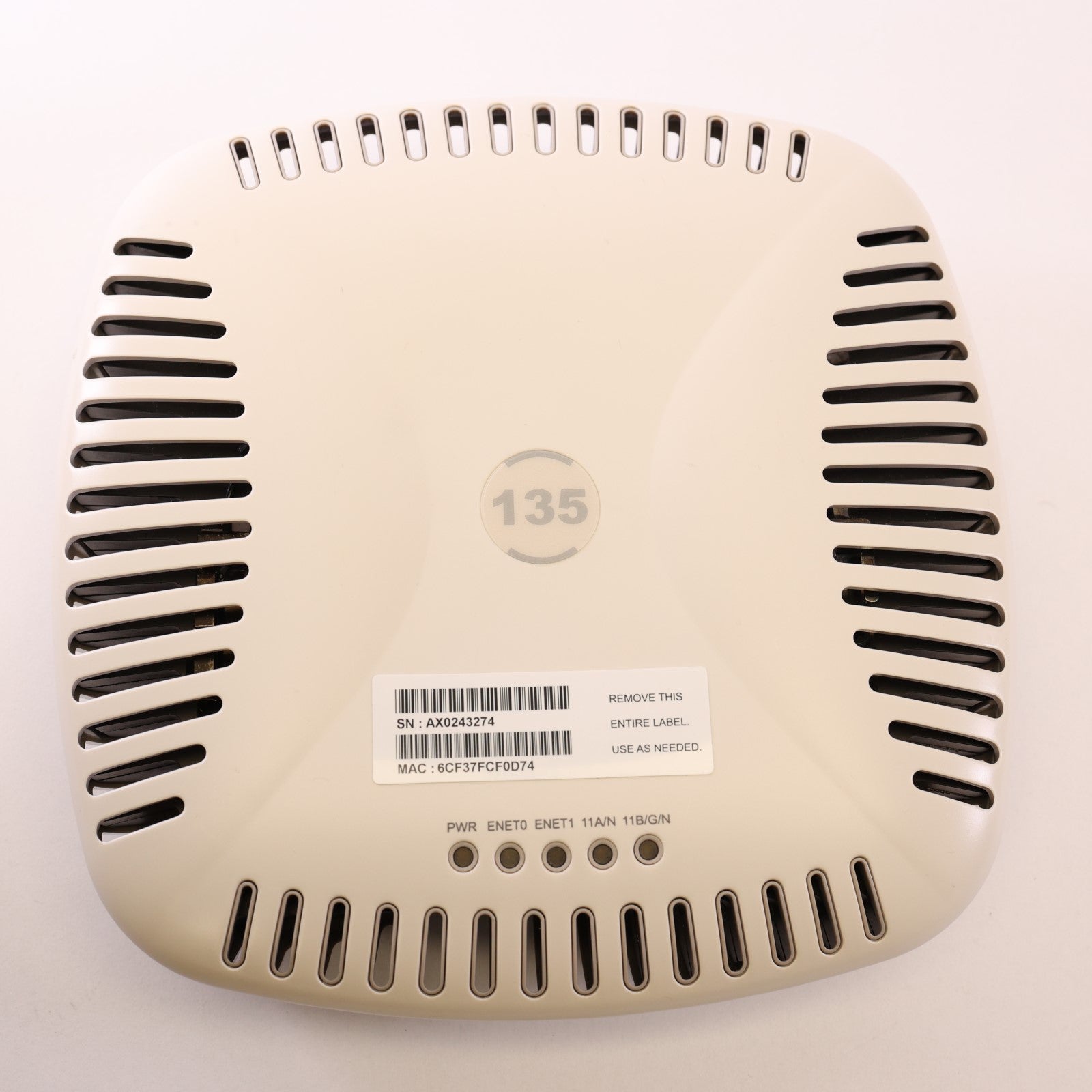

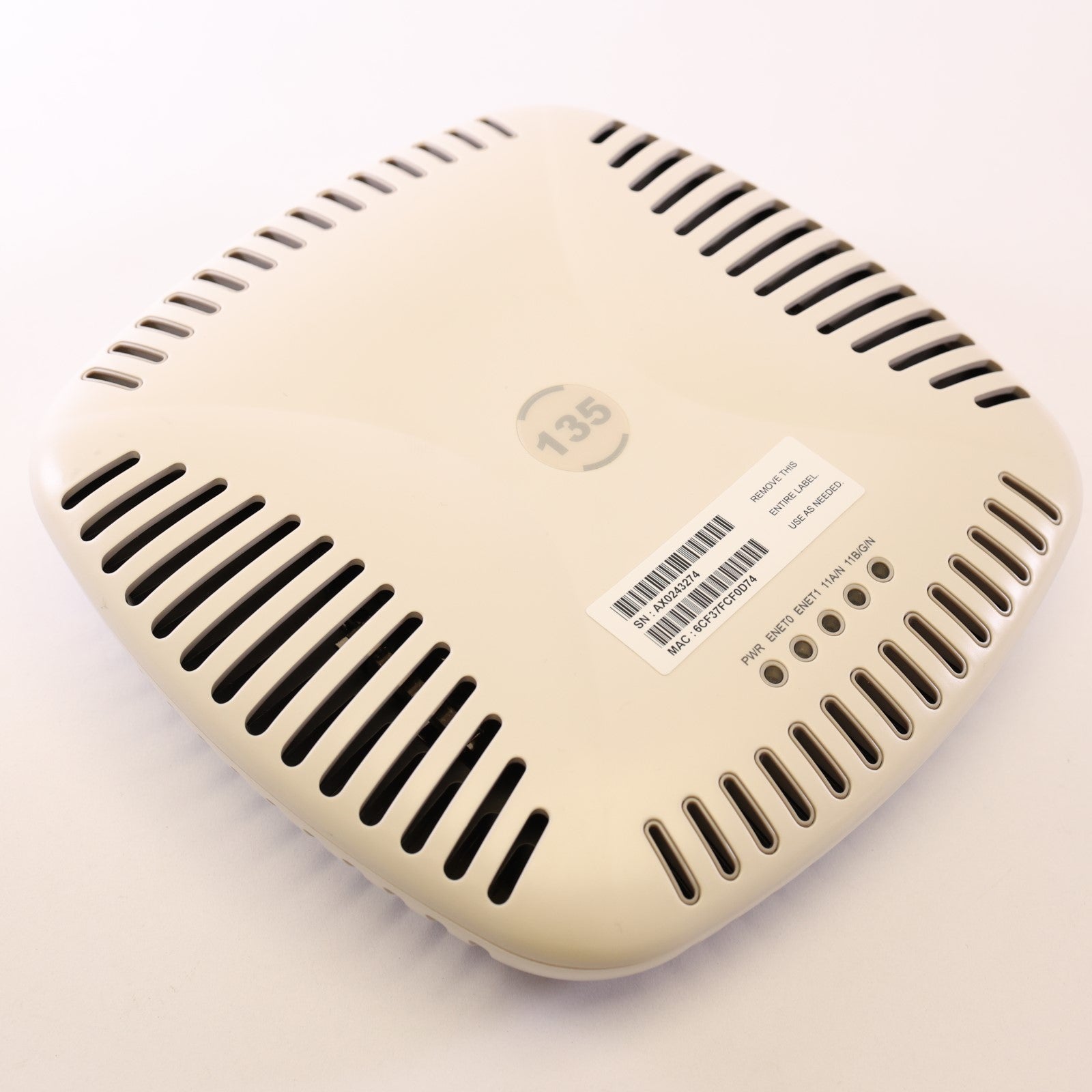

This item has been removed from a clean office environment. It is sold as the Wireless Access Point main unit only (as pictured). It does NOT include any mounting hardware, PSU or cables. It is in full working order and has been reset to factory settings. Please see below for more information.

Bulk Discounts:

  • Buy 2 and Save 5%
  • Buy 4 and Save 10%
  • Buy 8 and Save 15%
  • Buy 16 and Save 20%
  • Buy 25 and Save 25%
  • Buy 50 and Save 30%

See below the description for other items in the same bulk discount group. You can combine multiple different products to increase your savings.

Any applicable discount(s) will be calculated in the checkout automatically.

Brand: Aruba
Availability: Over 50 in stock
Ticktech SKU: AP-135_USED
Regular price £10.80
Regular price Sale price £10.80
Aruba Networks AP-135 3x3 MIMO Dual Radio Wireless Access Point 802.11a/b/g/n

Condition: This item has been removed from a clean office environment. It is sold as the Wireless Access Point main unit only (as pictured). It does NOT include any mounting hardware, PSU or cables.

It is in full working order and has been reset to factory settings.

It is in very good used condition, there may be a slight bit of yellowing to the plastics and the odd minor scuff/scratch mark, but this is all purely cosmetic and will not affect the performance of the item.

Part/Model Number: AP-135

Warranty: Supplied with 90 Days Return to Base warranty.

Item details/specification.

This multifunctional AP delivers wire-like performance at data rates up to 450 Mbps per radio. Taking advantage of 802.11n technology, the AP-135 employs three spatial streams to deliver 50% more throughput and support 50% more mobile devices in high-density environments compared to previous-generation APs.

MACSec authentication and encryption on Ethernet ports enable secure AP deployment by interoperating with the MACSec capability on Aruba Mobility Access Switches and other wiring closet devices.

The AP-135 features dual 10/100/1000BASE-T Ethernet interfaces and operate from standard 802.3af and 802.3at power-over-Ethernet (PoE) sources. The secondary Ethernet interface (active only when supplying 802.3at PoE or DC power to the access point) enables secure authorized backhaul for wired network-attached devices.

Working with Aruba’s line of centralized Mobility Controllers, the AP-135 delivers secure, high-speed network services that move users to a “wireless where possible, wired where necessary” network access model. The network can then be rightsized by eliminating unused Ethernet switch ports and thereby reducing operating costs.

The key to ensuring wire-like performance and reliability is Aruba’s unique Adaptive Radio Management and spectrum analysis capabilities, which manage the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance while mitigating any RF interference.

The multifunction AP-135 can be configured through the Mobility Controller to provide WLAN access with part-time air monitoring for wireless IPS and spectrum analysis. It can be configured as a dedicated air monitor within the campus WLAN or can be remotely located. It can enable wireless mesh networking for high performance network backhaul where wired cabling is not available.

Specifications.

Application: 802.11n indoor APs designed to support maximum performance for maximum client density, with maximum deployment flexibility and security.
Operating Mode: Campus AP, air monitor (AM) and spectrum monitor / Remote AP, AM and spectrum monitor
Radios: Software-configurable dual radio capable of supporting 2.4 GHz and 5 GHz

RF Management
Automatic transmit power and channel management control with auto coverage hole correction via Adaptive Radio Management (ARM)
Spectrum analysis scans the 2.4-GHz and 5-GHz radio bands to provide increased visibility into non-802.11n RF interference sources and their effect on 802.11n channel quality.

Advanced Features
Remote AP, spectrum analysis, secure enterprise mesh and wireless intrusion protection
MACSec security for authorization and data encryption between the AP ports and the wired access layer (requires MACSec support on the wired edge switch)
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
SecureJack-capable for secure tunneling of wired Ethernet traffic

Antenna
AP-134: Three RP-SMA antenna interfaces for external dual-band antennas
AP-135: Six internal downtilt omni-directional antennas; three per frequency band
2.4 to 2.5 GHz/3.5 dBi
5.150 to 5.875 GHz/4.5 dBi

Wireless Radio Specifications
AP type: Dual-radio, dual-band 802.11n indoor
Supported Frequency Bands (country-specific restrictions apply):
  • 2.400 - 2.4835 GHz
  • 5.150 - 5.250 GHz
  • 5.250 - 5.350 GHz
  • 5.470 - 5.725 GHz
  • 5.725 - 5.850 GHz
Available Channels: Controller-managed, dependent upon configured regulatory domain
Supported Radio Technologies:
  • 802.11b: Direct-sequence spread-spectrum (DSSS)
  • 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
  • 802.11n: 3x3 MIMO with up to three spatial streams
Supported Modulation Types:
  • 802.11b: BPSK, QPSK, CCK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Transmit Power: Configurable in increments of 0.5 dBm
Maximum Transmit Power (aggregated for three active transmit chains):
  • 2.4 GHz: 23 dBm (limited by local regulatory requirements)
  • 5 GHz: 23 dBm (limited by local regulatory requirements)
Maximum Ratio Combining (MRC) for improved receiver performance
Short guard interval for 20-MHz and 40-MHz channels
Space Time Blocking Code (STBC) for increased range and improved reception
Low Density Parity Check (LDPC) for high efficiency error correction and increased throughput
Transmit Beam-forming (TxBF) ready platform for increased reliability in signal delivery
Association Rates (Mbps):
  • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11n: MCS0 – MCS23 (6.5 Mbps to 450 Mbps)
  • 802.11n High-Throughput (HT) Support: HT 20/40
  • 802.11n Packet Aggregation: A-MPDU, A-MSDU

Power
  • 8 V DC 802.3af PoE or 802.3at PoE+
  • 12 V DC external AC supplied power (adapter sold separately)
  • Maximum power consumption: 15 watts

Interfaces
Network:
  • 2x10/100/1000BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
  • Supports MACSec encryption, 802.3az (EEE)
  • 48 V DC 802.3af PoE or 802.3at PoE+ interoperable with intellisource power sourcing equipment (both ports)
  • Antenna (model AP-134 only): 3 x RP-SMA antenna interfaces (supports up to 3x3 MIMO)
Other: 1 x RJ-45 console interface
