Kramer K-SPIDER Multi-Format Active HDMI Adapter Cable to HDMI, USB-C, DisplayPort, mDP

Kramer K-SPIDER Multi-Format Active HDMI Adapter Cable to HDMI, USB-C, DisplayPort, mDP

Condition: This item is new and unused, supplied in the original box, kept as a spare for a large company but now surplus to requirements. The box has been opened but the item has not been used.

Part/Model Number: K-SPIDER  /  91-00015599

Warranty: This item is sold with a 90 Day Return to Base (RTB) warranty.

Item details/specification.

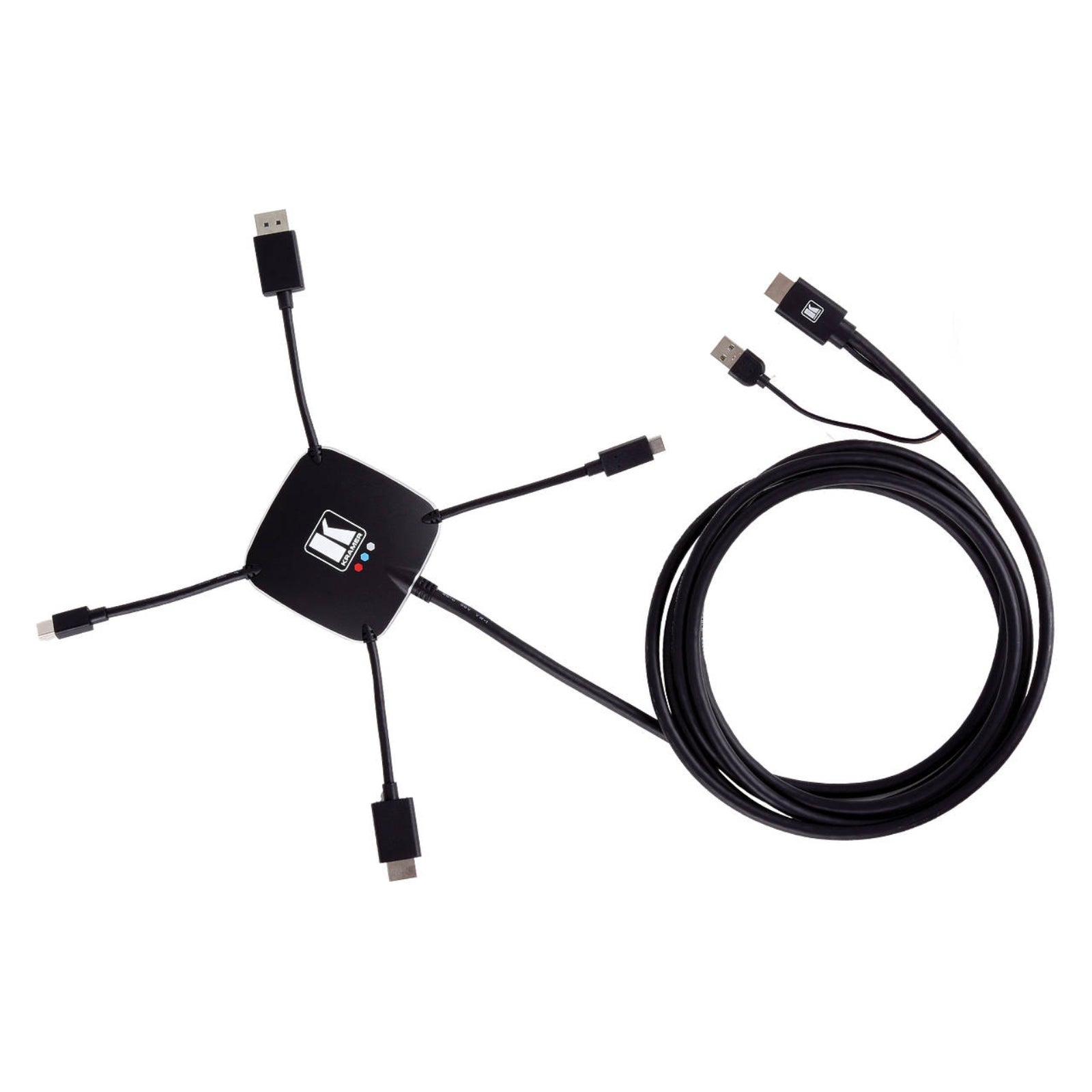

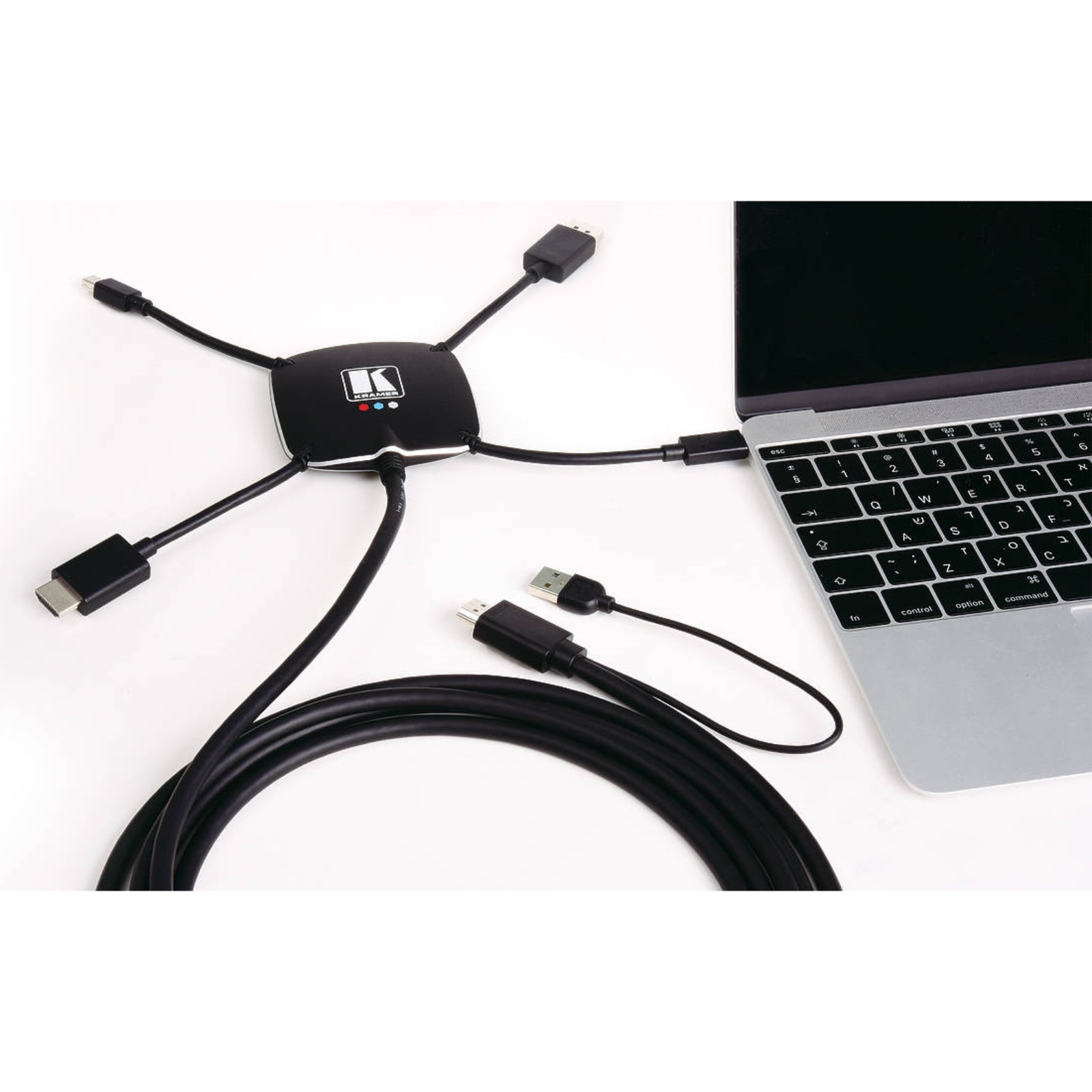

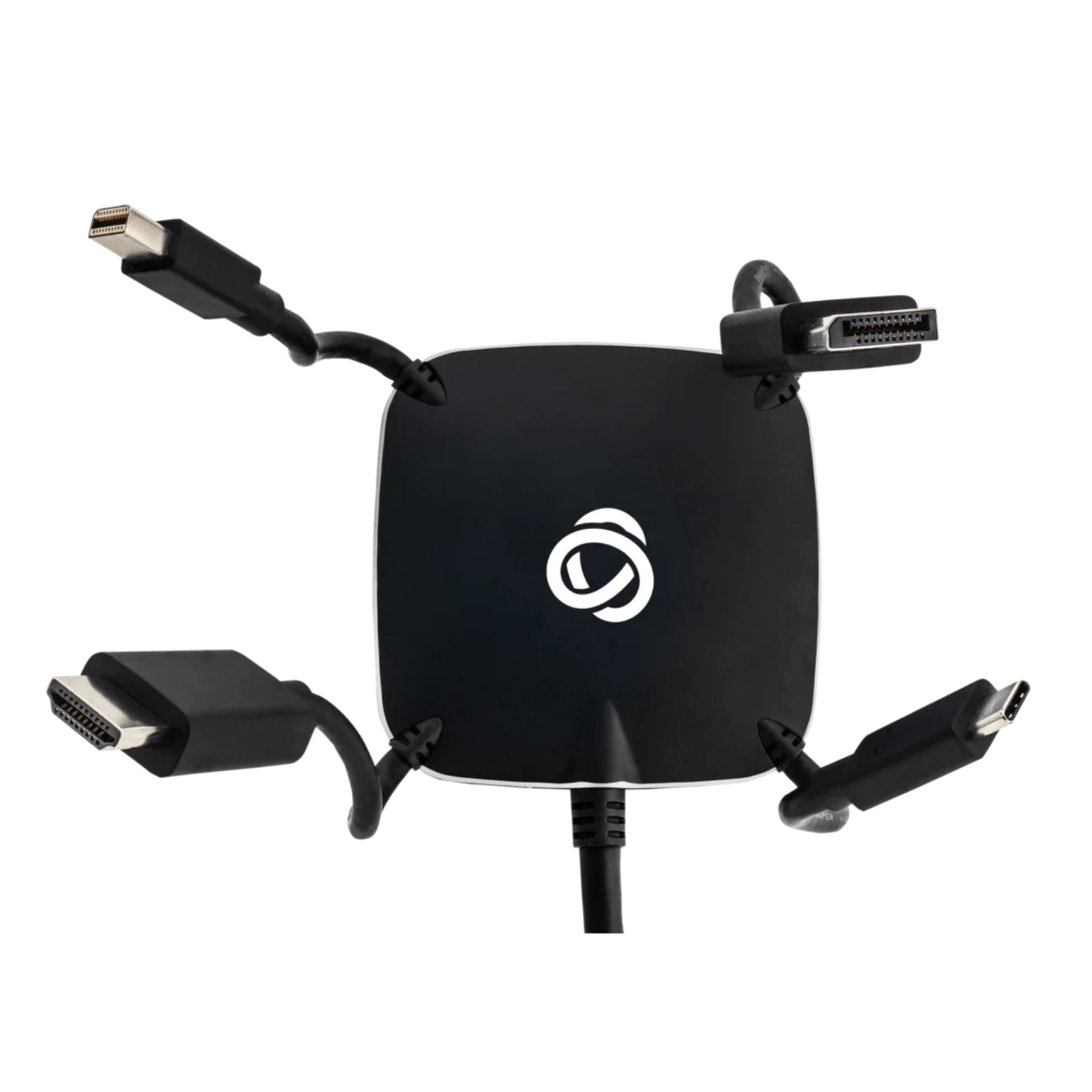

K−SPIDER is an active multi−format male input to HDMI male output adapter that enables you to connect one HDMI, DisplayPort, mini DisplayPort, or USB Type−C source to an HDMI acceptor.

Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.

Features

• High–Performance Adapter Cable — Supports full 4K@60Hz digital video connectivity.
• Active Adapter — Retimes the signal to ensure full resolution signal quality.
• Simplifies Equipment Requirements — Replaces multiple separate cables, adapters, and dongles with a single multi–head cable.
• Plug and Play Installation — No software required.
• 3 Meter Output Cable.

Inputs
HDMI: On a male HDMI connector over 6.5cm (2.5”) pigtail
USB-C: On a male USB type–C port over 6.5cm (2.5”) pigtail
DisplayPort: On a male DisplayPort connector over 6.5cm (2.5”) pigtail
Mini DP: On a male mini DisplayPort connector over 6.5cm (2.5”) pigtail

Outputs
HDMI: On a male HDMI connector over 3.05m (10ft) 30AWG HDMI cable

Ports
USB: On a male USB–A connector over 20cm (7.9”) pigtail

Video
Max Resolution: Up to 4K@60Hz
Compliance: CEC, DDC and HDCP 2.2

Power
Optional Auxiliary Power Through USB Connector: Use external 5V/1A power adapter or higher

Environmental Conditions
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)
Safety: FCC, UL, CE
Environmental: RoHs, WEEE

Enclosure
Type: ABS Shell

Accessories
Included: USB power cord

Product Dimensions
33.00cm x 30.30cm x 2.10cm (12.99" x 11.93" x 0.83" ) W, D, H

Product Weight
0.3kg (0.7lbs) approx.

Shipping Dimensions
34.00cm x 30.00cm x 2.10cm (13.39" x 11.81" x 0.83" ) W, D, H

Shipping Weight
0.3kg (0.7lbs) approx.
