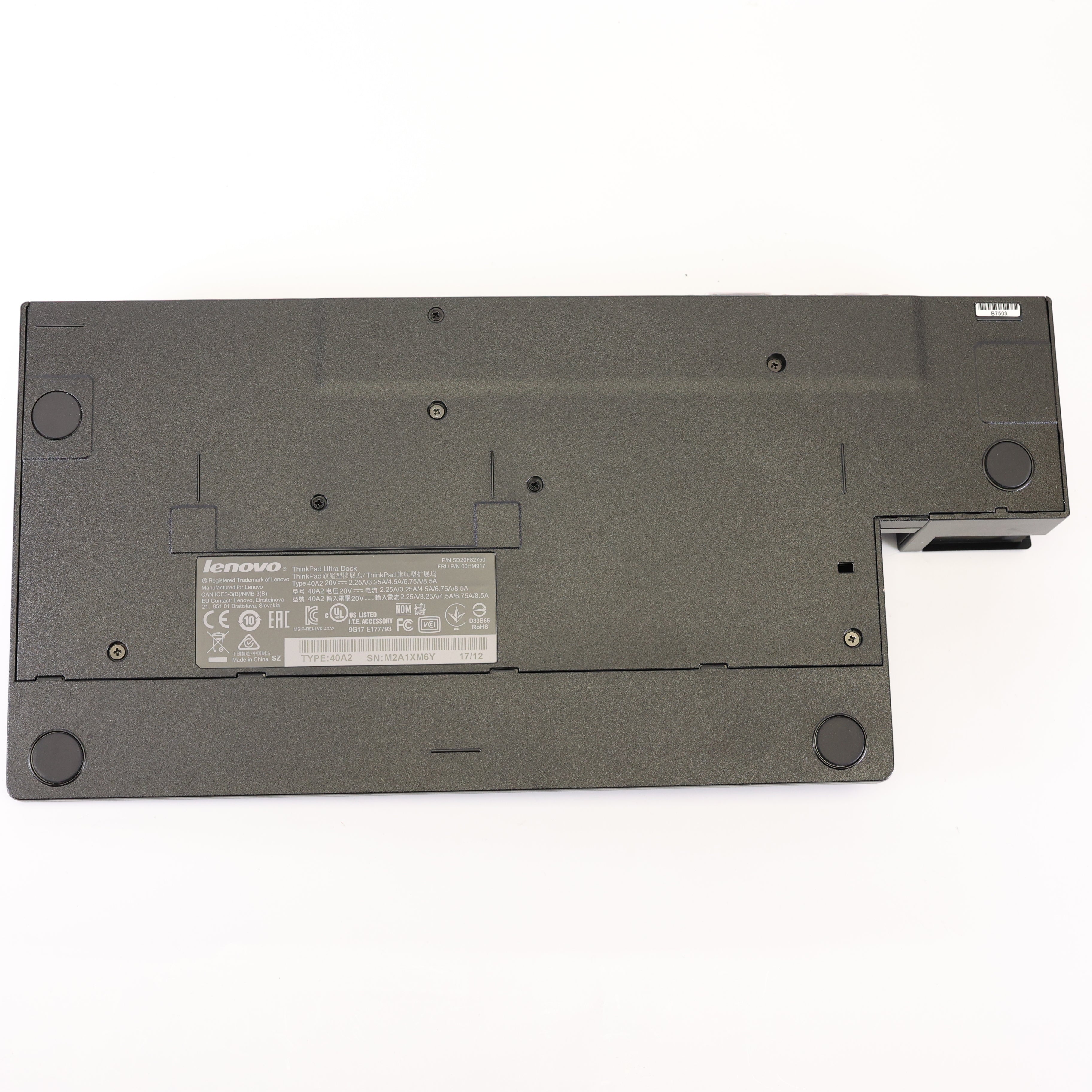

Lenovo Thinkpad W540 W541 Ultra Dock 170W Laptop Docking Station 40A20170UK 40A2

Lenovo Thinkpad W540 W541 Ultra Dock 170W Laptop Docking Station 40A20170UK 40A2

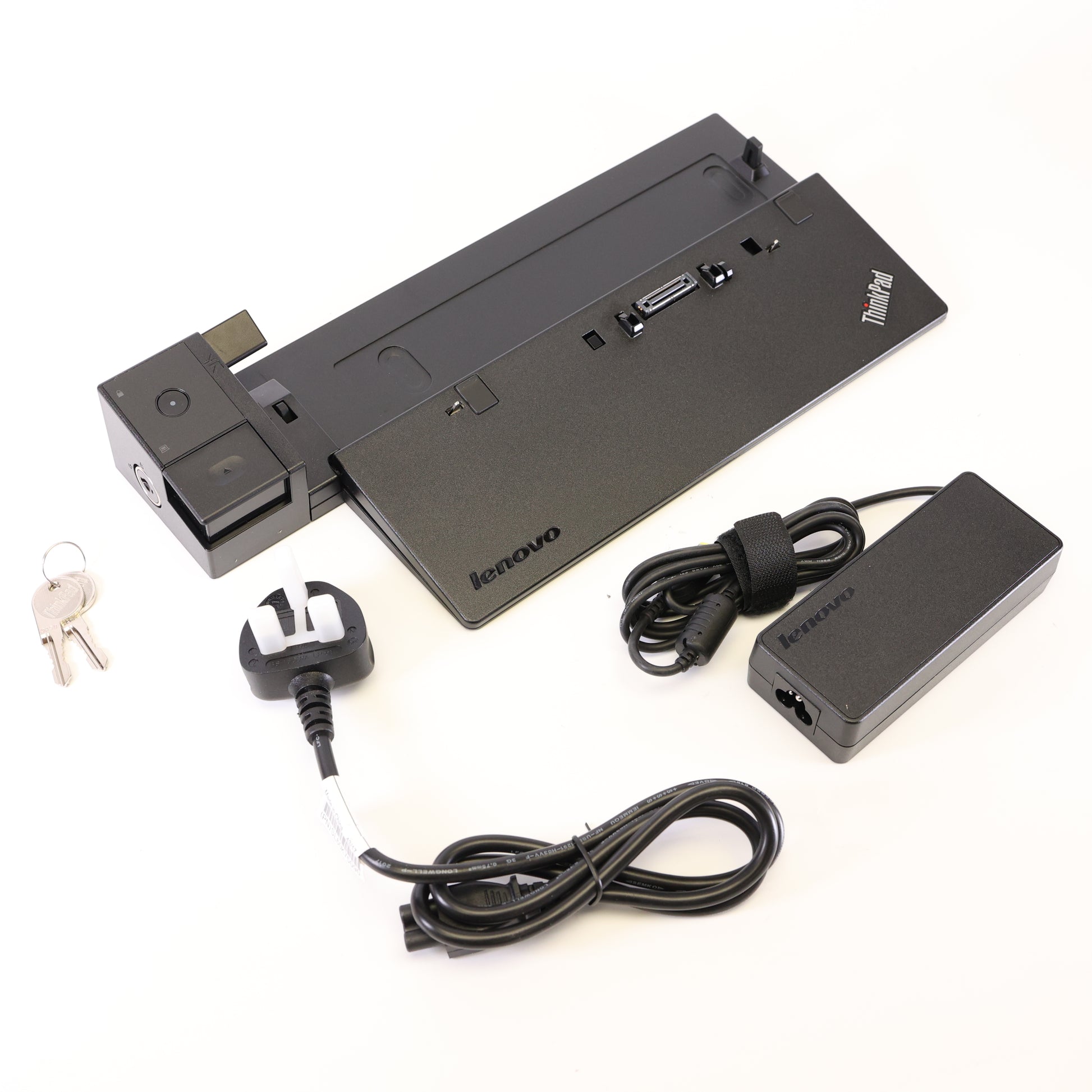

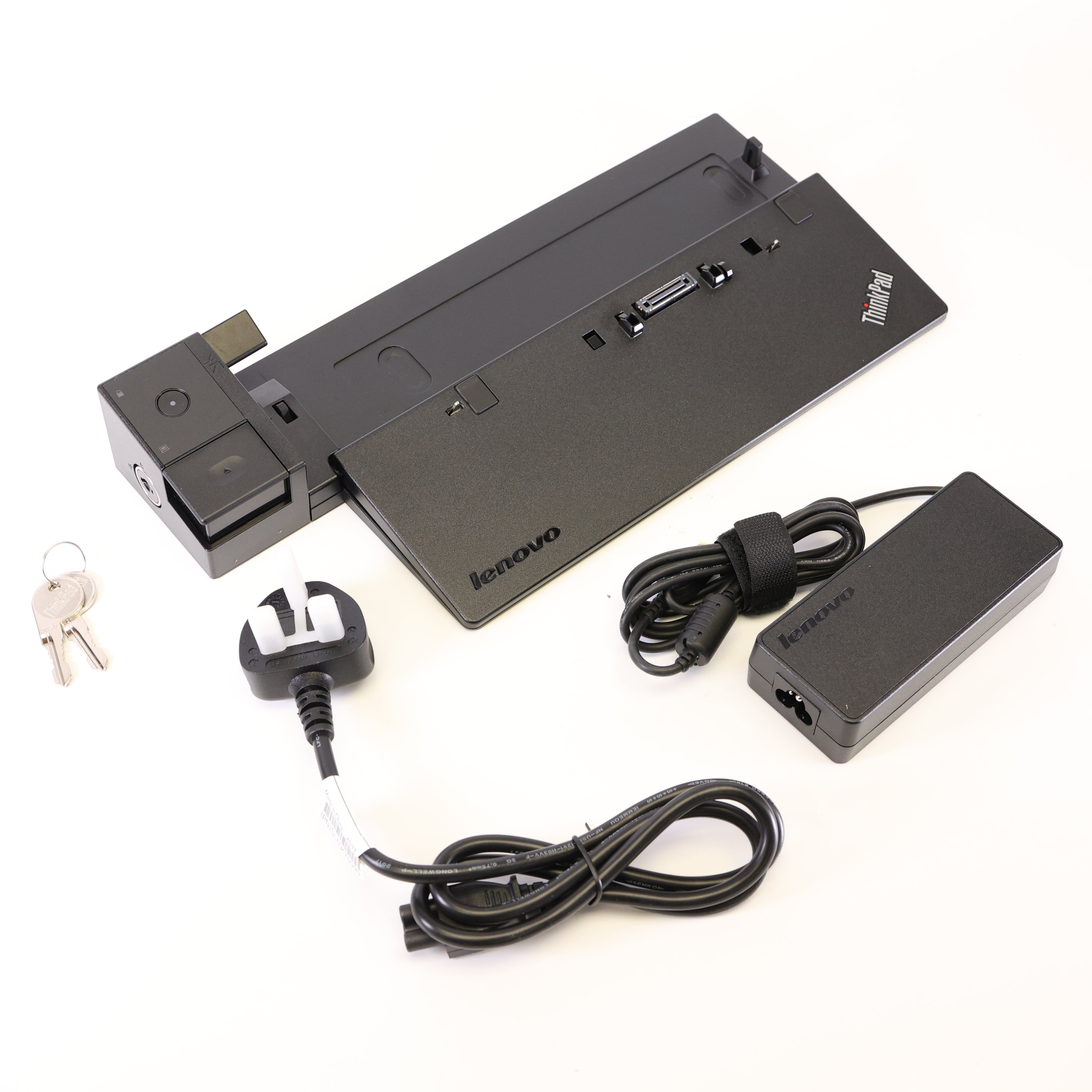

Condition: This item is brand new and unused (aged stock), still factory sealed in the original box with all original accessories (170w Power Supply, Power Cable, Keys and instructions).

The item comes with an EU power cable inside the box, but we will include a UK power cable with the item as well.

Part/Model Number: ThinkPad Ultra Dock 40A2  /  40A20170UK  / 40A2017-0UK  /   04W3947  /  00HM917  /  SD20A06037  /  SD20F82750  /  00HM917

Warranty: This item is sold with a 6 Month Return to Base (RTB) warranty.

Item details/specification.

Making mincemeat out of your workload, the completely re-designed ThinkPad Ultra Dock comes with an included ThinkPad 170W AC Adapter and grows your capability without growing in size.

The ultimate 170W docking solution, the ThinkPad Ultra Dock includes a wide range of video outputs, including HDMI 1.4 and support for multiple external monitors, so you can multi-task like never before.

It comes with 3x USB 2.0 ports, one of which supports always-on USB charging for mobile devices. Therefore, you can charge your tablet or mobile using the dock without your ThinkPad being present.

The dock is equipped with 3x USB 3.0 ports for connecting hard drives and other external storage.

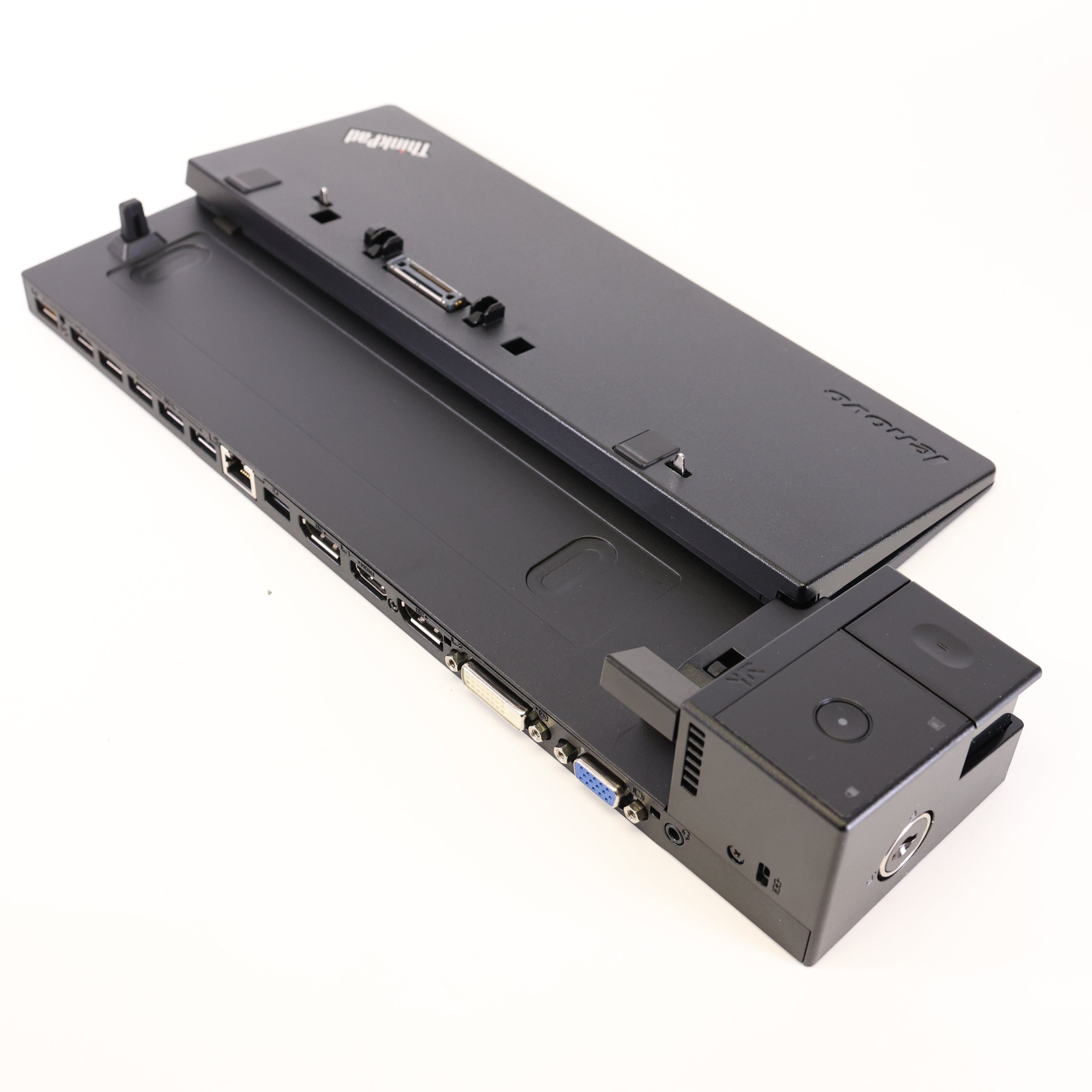

This ThinkPad docking station also support 10/1000 Gigabit Ethernet connection and comes with 2x DisplayPort 1.2, 1x DVI-D, 1x HDMI 1.4 and 1x VGA port. Some of the video ports do have exclusive use and are also dependent on the docked ThinkPad configuration.

The dock comes with a 170W AC adapter which powers both docking station and ThinkPad. The dock is driver-free but still delivers crystal-clear video quality thanks to Lenovo technology. It also features 1 x Stereo/Mic Combo Audio Port for headphone/speaker/microphone connection.

Specifications

• Product Type: Port replicator
• Dimensions (WxDxH): 34.5 cm x 16.25 cm x 5.56 cm
• Weight: 920 g
• Localisation: United Kingdom
• Power: Power adapter - external 170 Watt AC 120/230 V (50/60 Hz)

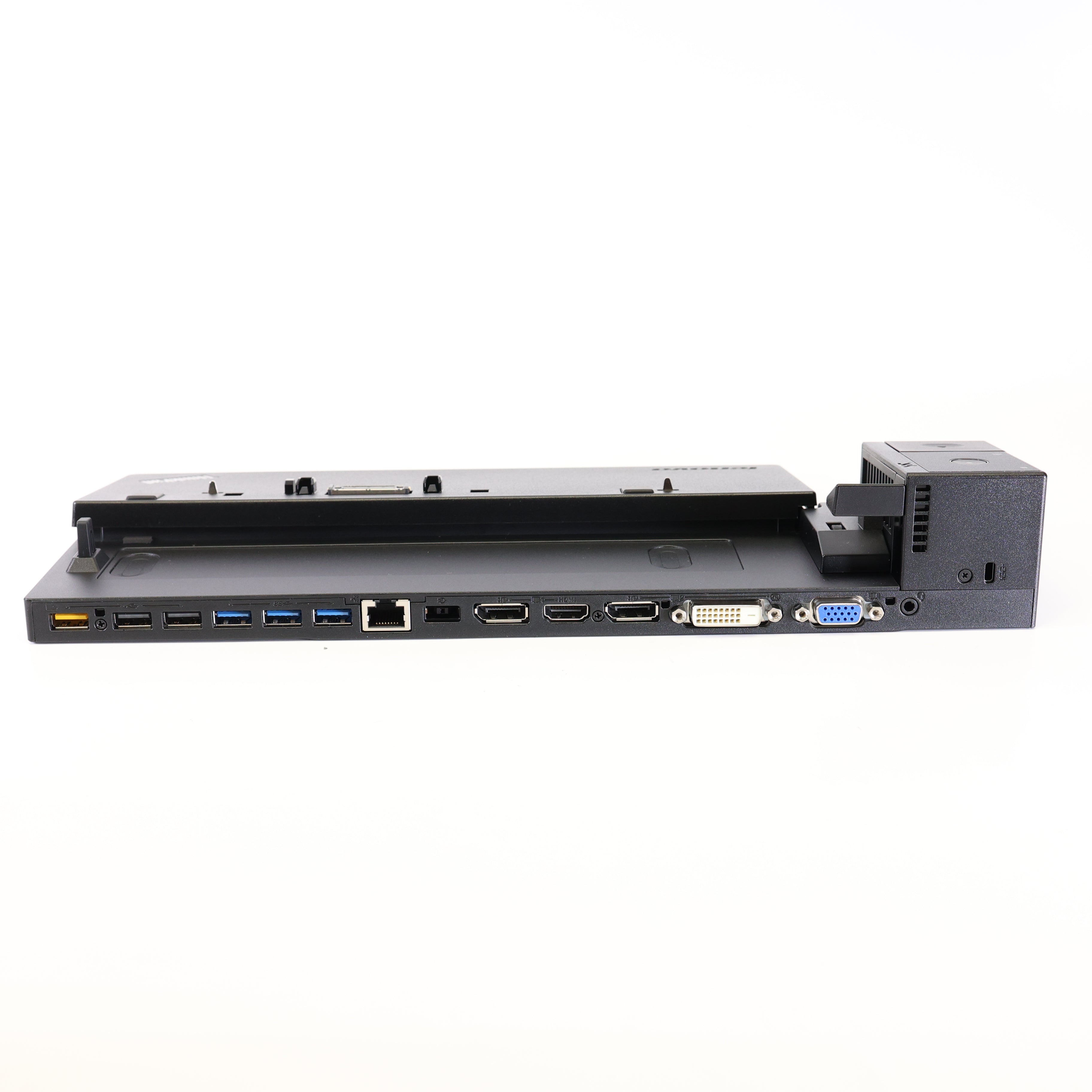

• Interfaces: 3 x USB 2.0 - 4 pin USB Type A ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - DVI-Digital - 24 pin digital DVI ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm ¦ 1 x docking / port replicator

Designed For:

• ThinkPad L450
• ThinkPad T440
• ThinkPad T440s
• ThinkPad T440p
• ThinkPad T450s
• ThinkPad T540p
• ThinkPad W540
• ThinkPad W541
• ThinkPad W550s
• ThinkPad X240
• ThinkPad X250
