Lindy DisplayPort to Quad HDMI MST/SST Hub with 2x2 / 4x1 Video Wall Processor 38418

Lindy DisplayPort to Quad HDMI MST/SST Hub with 2x2 / 4x1 Video Wall Processor 38418

Condition: This item is brand new and unused, supplied in the original box with all original accessories (including the power supply).

Part/Model Number: 38418

Warranty: Supplied with manufacturer's warranty.

Item details/specification.

DisplayPort MST Hubs allow for the connection of multiple displays to a single DP source, to create larger workstation setups or larger scale DP distribution.

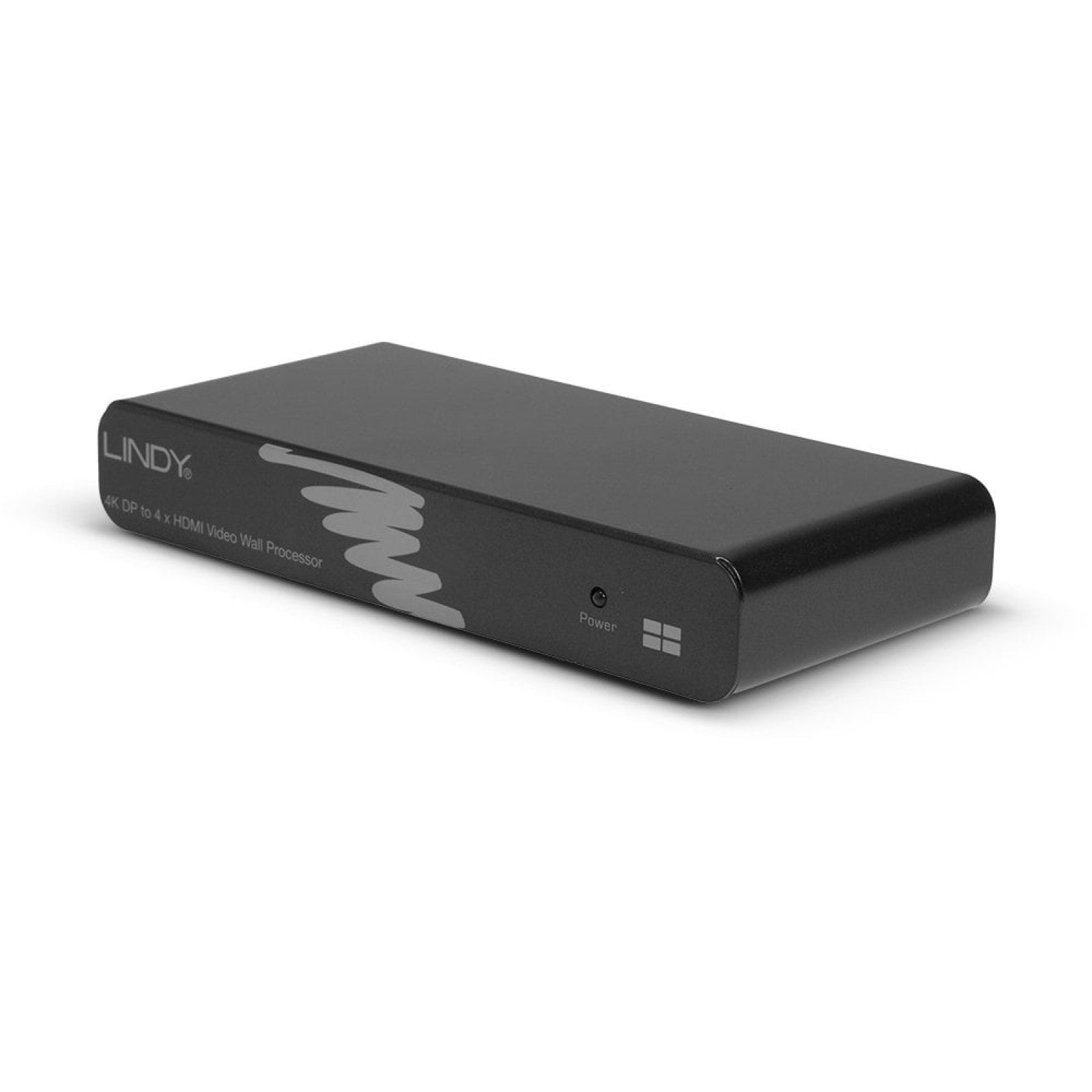

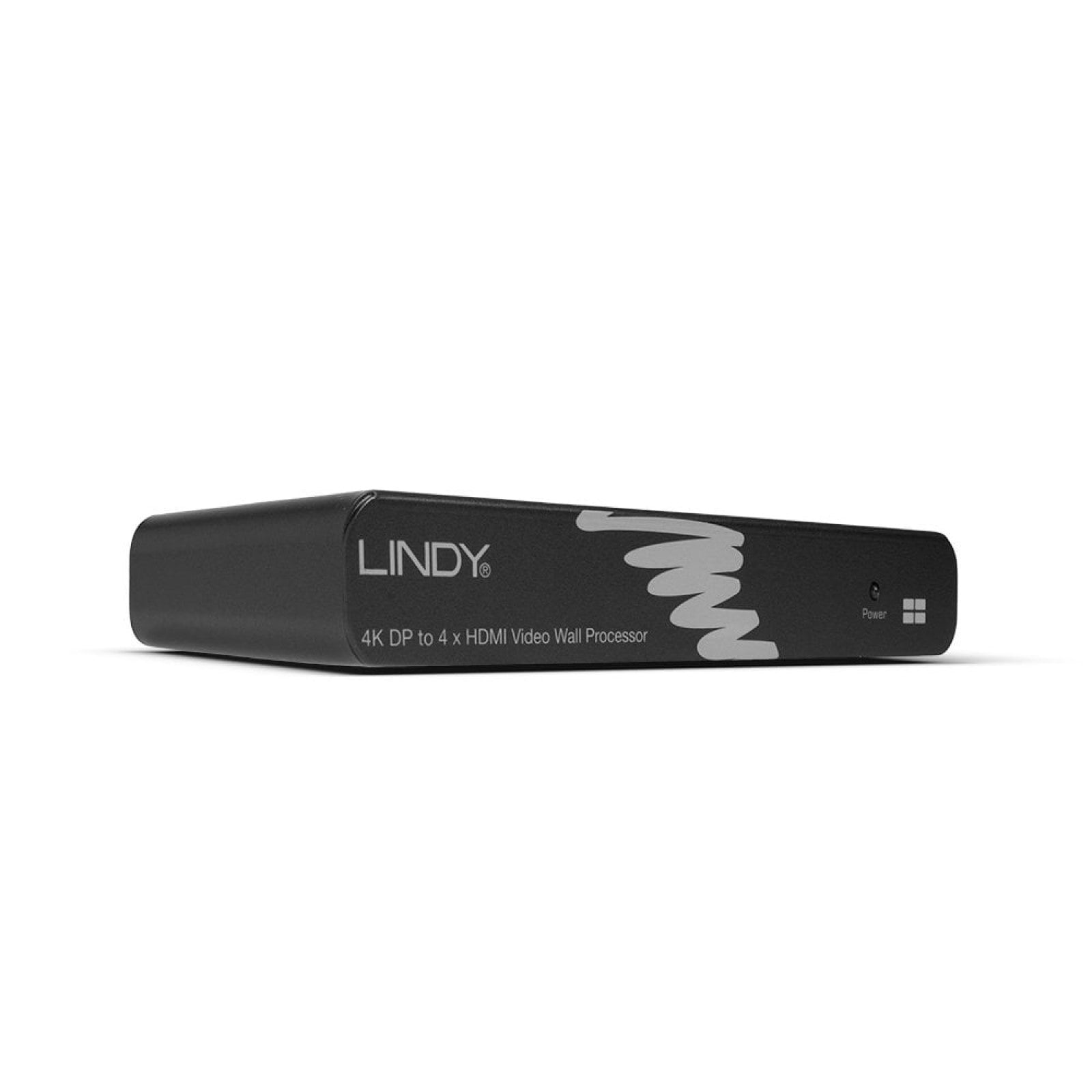

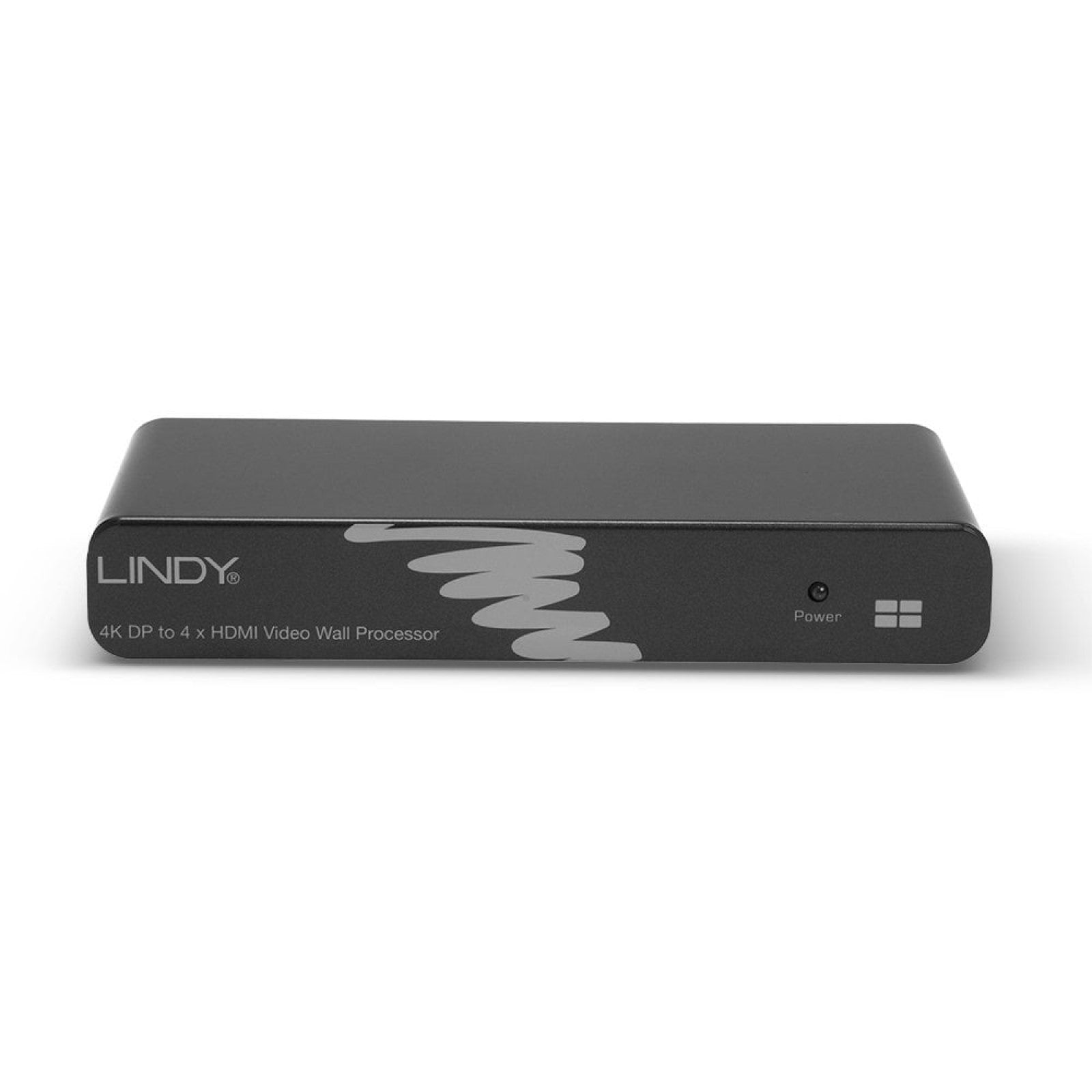

The Lindy DisplayPort to Quad HDMI MST/SST Hub with Video Wall Processor is a high-performance DP 1.2 MST and SST hub, with Video Wall, Duplicate, Extended and Expander View / Eyefinity functions.

To create a wide variety of display solutions, this processor groups the displays connected to port 1 and 2 together to create 1 single output, and then also apply this to the displays connected to 3 and 4.

This allows for the use of 4 different modes as detailed below. Maximum supported resolution can depend on the windows configuration, graphics card and connected display.

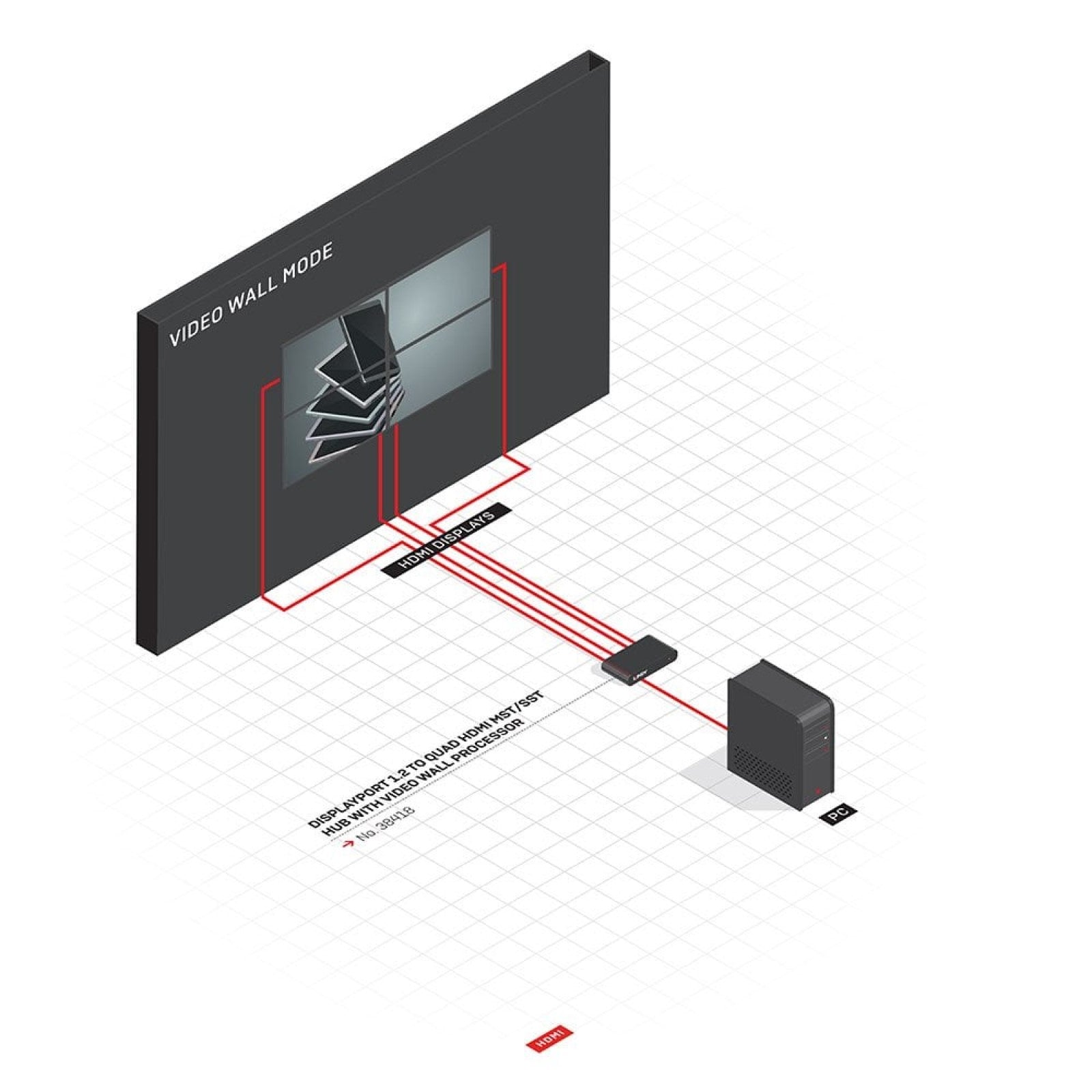

Video Wall Mode:
Supports resolutions up to 3840x2160@60Hz using 4 displays connected together to create a single display, visualised as a 2x2 video wall.
This is a great solution for digital signage in retail, transport hubs or trade shows.
For the system requirements and set-up instructions of certain graphics cards, please refer to the Lindy manual under the Downloads section of this page.

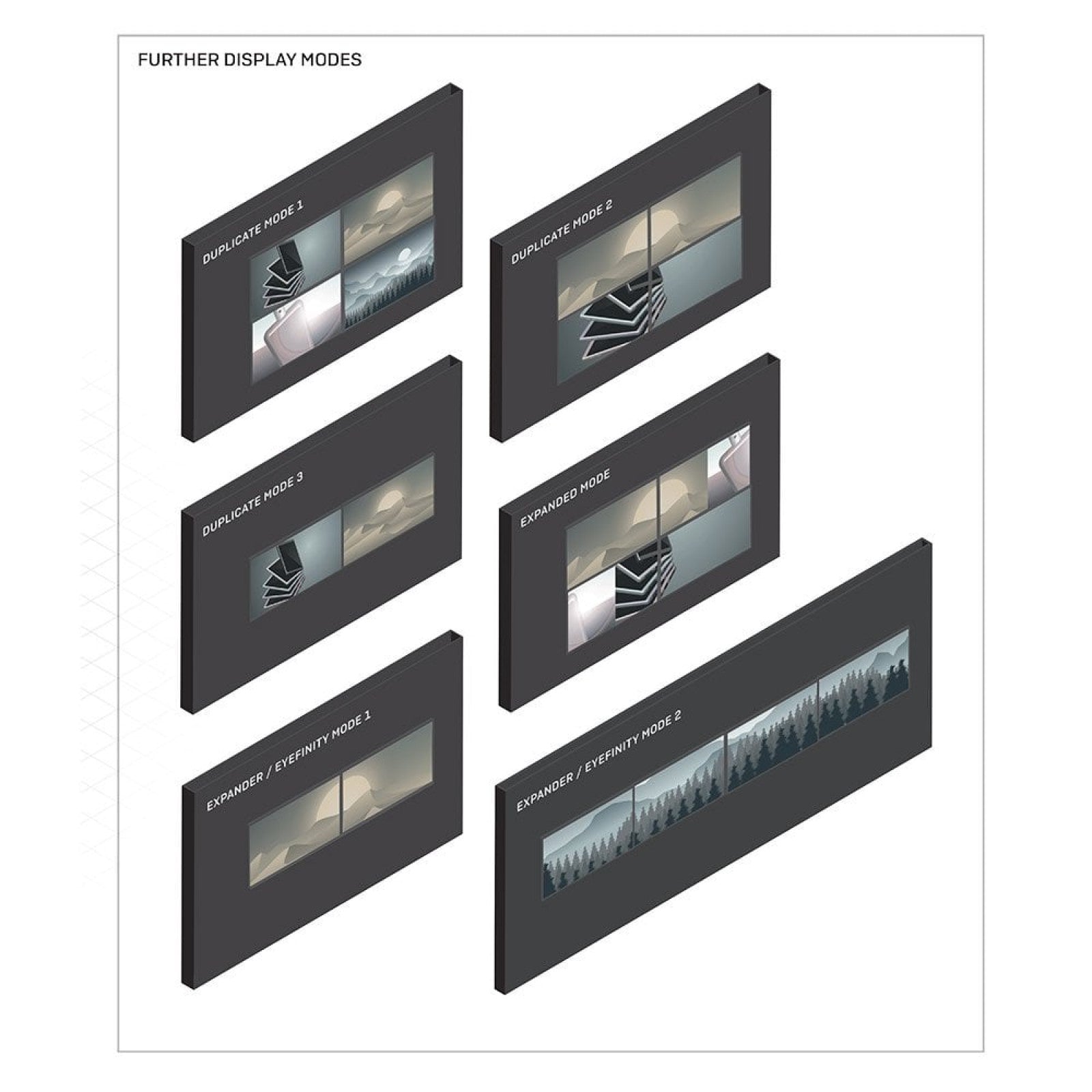

Duplicate Mode:
Supports resolutions up to 1920x1080@60Hz per display, using up to 4 displays. This works similar to a standard DisplayPort splitter with SST functionality, duplicating the input signal onto each individual display. The processor can also split the signal across 2 individual 4K displays, with resolutions up to 3840x2160@60Hz.
Using the grouped layout, resolutions up to 3840x1080@60Hz can be supported, duplicating the signal across the 2 separate groups (1+2) and (3+4).
These modes are great for use in security, surveillance and control installations.

Extended Mode:
This mode supports resolutions up to 3840x1080@60Hz per display by using the grouped layout of displays 1+2 and 3+4. Content can be then shared across the 2 layouts simply by dragging the mouse across the displays.
This is useful for creating a large-scale office setup, or in graphic designs installations where users want to easily transfer content to another display or user.

Expander / Eyefinity Mode:
This mode allows for the connection of 4 displays to create a multi-display workstation, viewed as a single display with resolutions up to 7680x1080@60Hz, with each display showing Full HD signals. Alternatively using 2 4K displays viewed as a single display, 7680x2160@30Hz can be viewed. This allows for the creation of a premium office or home workstation, or high-performance control set-ups in broadcasting and surveillance.
Multiple MST/SST hubs can be used to create even larger display setups, providing this cna be supported by the display driver and graphics card.

Please note:

1. This active MST Hub requires the source or graphics card to support DP++ to provide dual-mode signals
2. This MST hub does not support output to 3 displays.
3. NVIDIA graphics cards require a display to be connected to the graphics card for control. Intel and AMD cards do not require this.

Features

• Creates a 2x2 4K Ultra HD video wall from a single DisplayPort 1.2 source
• High performance DisplayPort 1.2 MST and SST Hub, with Video Wall, Duplicate, Extended & Expander View / Eyefinity functionality
• Supports DisplayPort & HDMI resolutions up to 4K@60Hz 4:4:4
• Supports DisplayPort MST and SST modes

Specifications:

• AV Interface: DisplayPort to HDMI
• Interface Standard: DP 1.2 / HDMI 1.4b
• Supported Bandwidth: 21Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit
• Maximum Output Resolution: 3840x2160@30Hz
• HDCP Support: 1.4
• Supported Audio: Audio Pass Through
• Separate Audio Ports: -
• Special Features: Supports both MST and SST modes | Output ports are grouped in computers OS: 1+2=Display1, 3+4=Display 2
• Supports extended and duplicated desktop mode
• Requires an Intel / AMD graphics card that supports 4 displays via an MST enable DisplayPort output

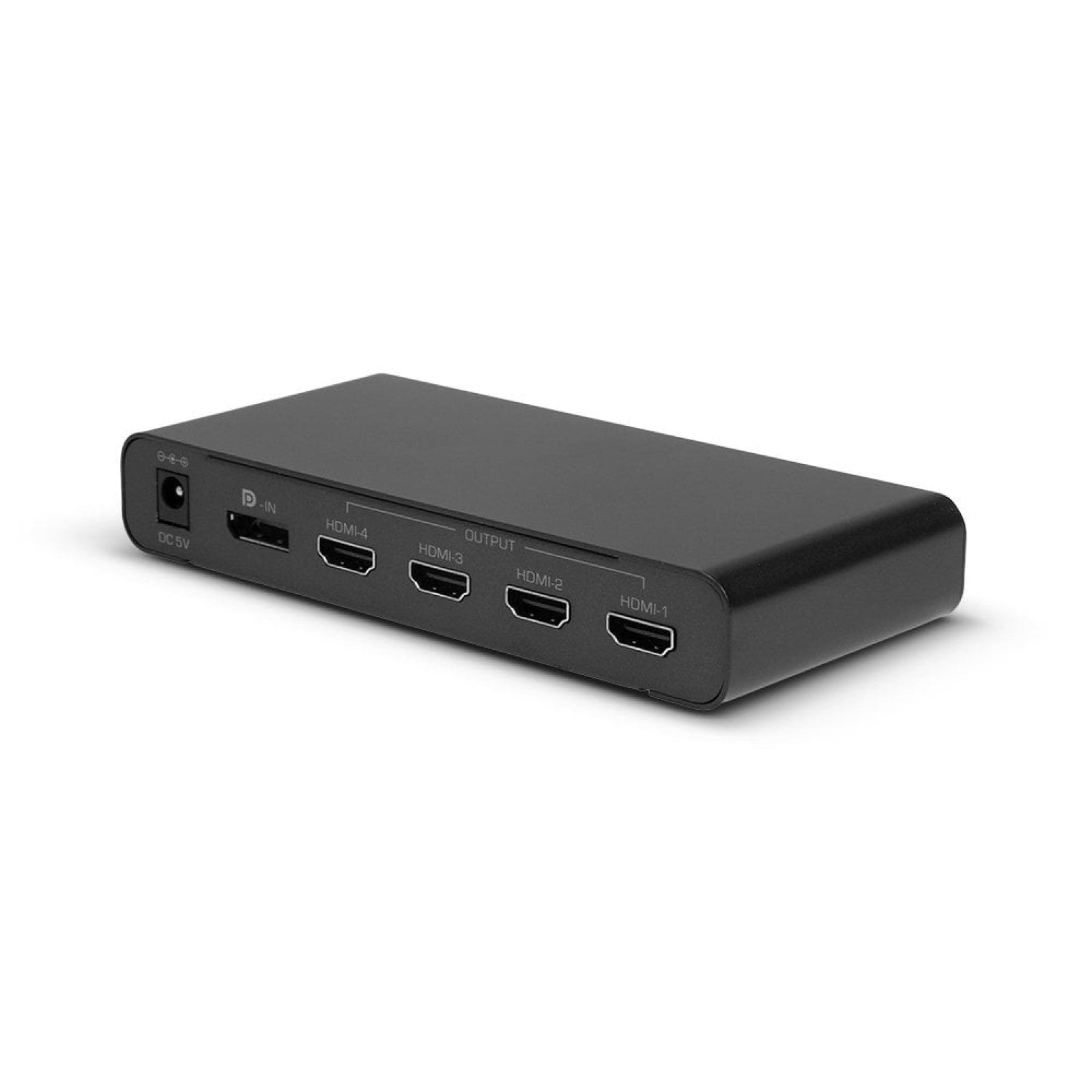

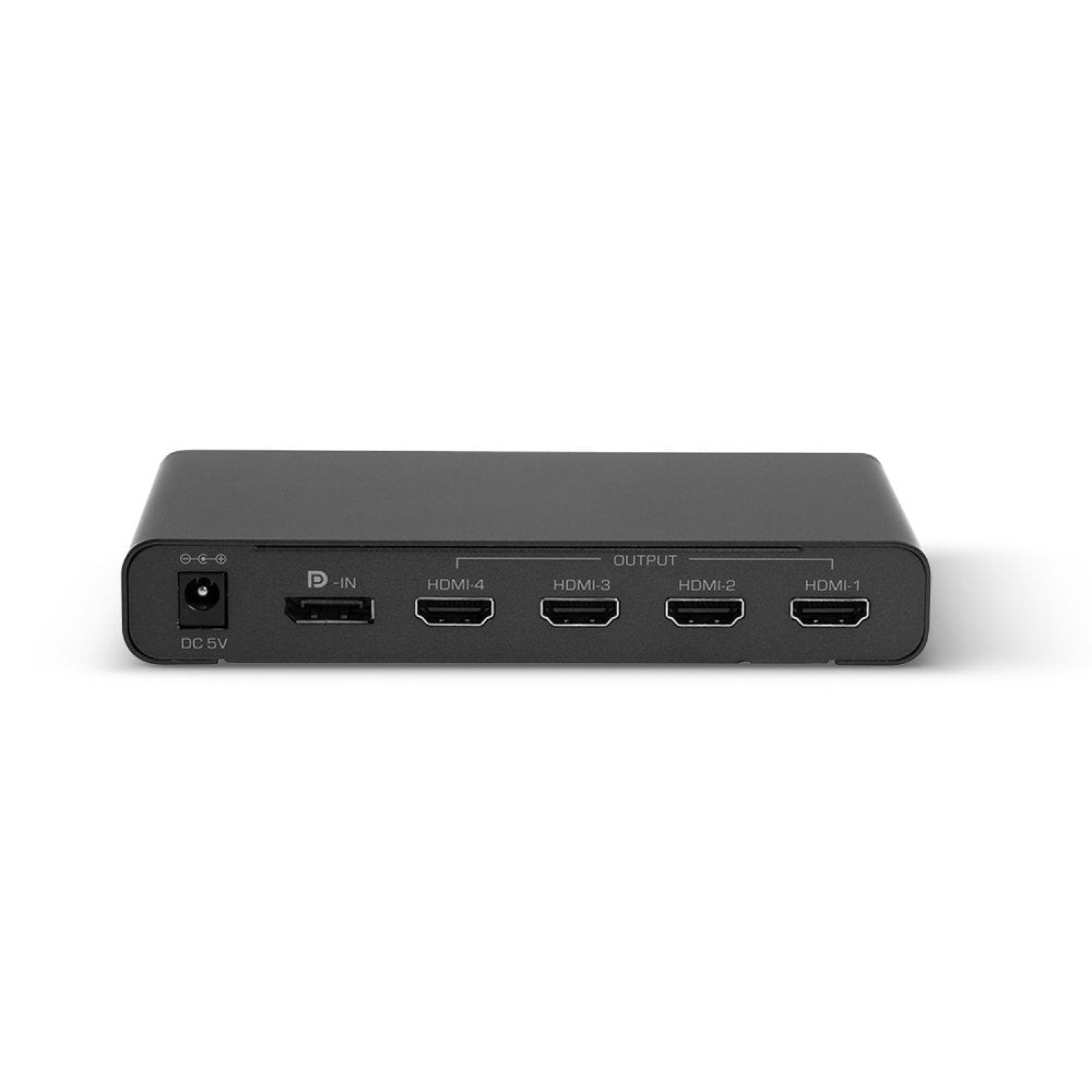

Connectors:

• Input: 1 x DisplayPort (Female)
• Output: 4 x HDMI Type A (Female)
• Power: 5.5/2.5mm DC Socket

Physical properties:

• Dimensions (approx.) WxDxH: 155x72x25mm (6.1x2.83x0.98in)
• Housing Material: Metal
• Net Weight: 0.41kg (0.9lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)
• Humidity: 40-50% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous:

• Packaging Type: Carton Box
• Packaging Dimensions: 220x160x50mm (8.66x6.3x1.97in)
• Gross Weight: 0.59kg (1.3lb)
• Certified: CE, UKCA, FCC, REACH & RoHS

Package content:

• 4K DisplayPort to 4 x HDMI Video Wall Processor
• Multi-Country Power Supply Unit (UK, US, EU & AUS)
• Lindy Manual

Purchasing information:

• No.: 38418
• EAN: 4002888384186
