Belkin Modular 4-Port Dual Head HDMI Secure KVM Switch w/ Remote PP 4.0 F1DN204MOD-HH-4
Condition: This item is brand new and unused, supplied in the original box with all original accessories and all required cables.
We are also selling the 'DisplayPort' version of the 'Host' cables if you need them, please see the add-on items (above) or related items (below).
Part/Model Number: F1DN204MOD-HH-4 (Package) / F1DN204MOD-BA-4 (KVM/Remote) / 4x F1DN2MOD-HC-H06 (Host Cables) / 1x F1DN2MOD-CC-H06 (Console Cable)
Warranty: This item is sold with the Manufacturer warranty.
Item details/specification.
Main Features
- Designed for NIAP PP PSD 4.0 compliance
- Video support for up to 4K (3840x2160), @30Hz refresh
- Optional DP, mDP, DPMST, HDMI, DVI, VGA, and USB-C cables - host and console

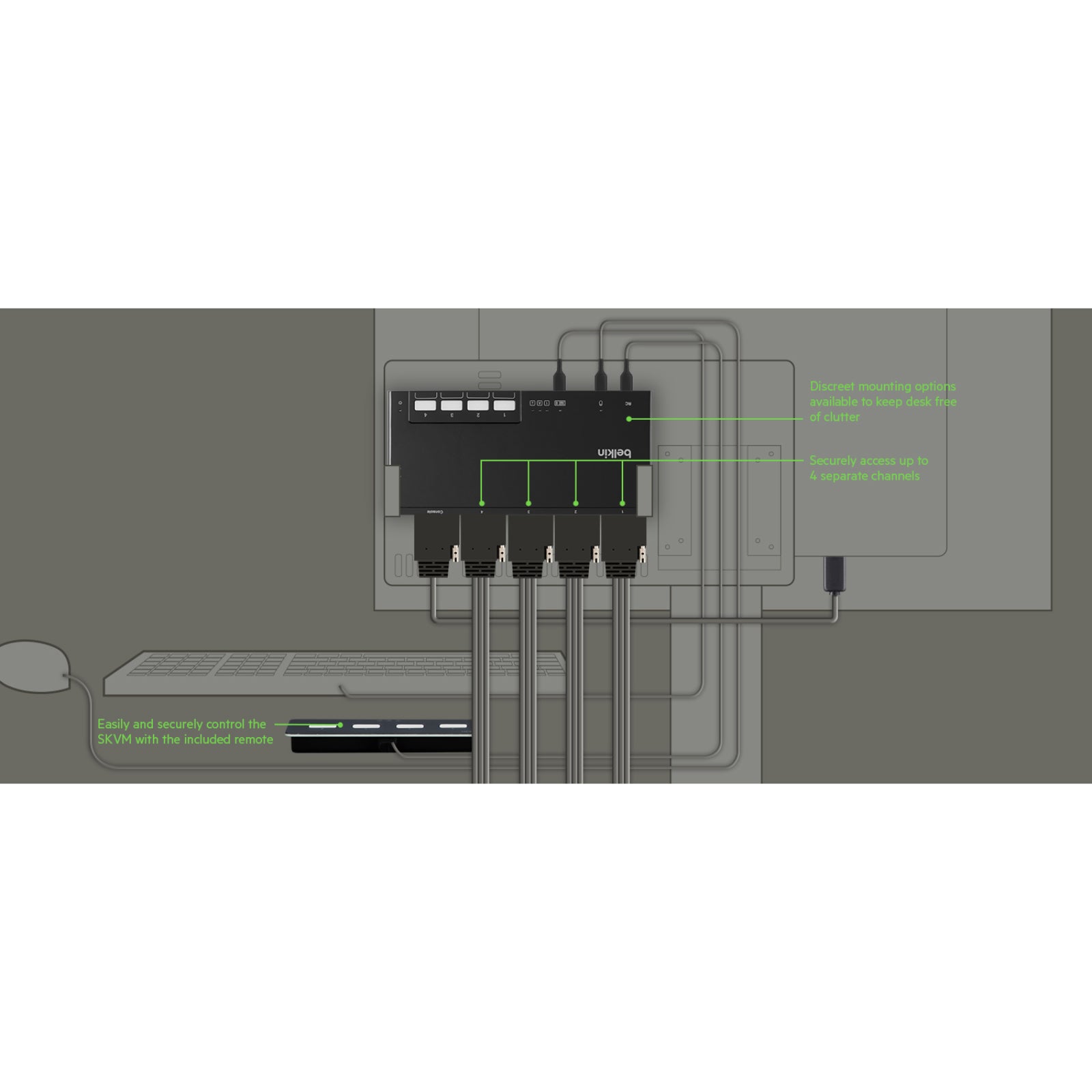

- Modular form factor for maximizing desk space
- Supports up to four host computers
- Supports two displays for the user
- Included remote-control unit
- Included host and console cables

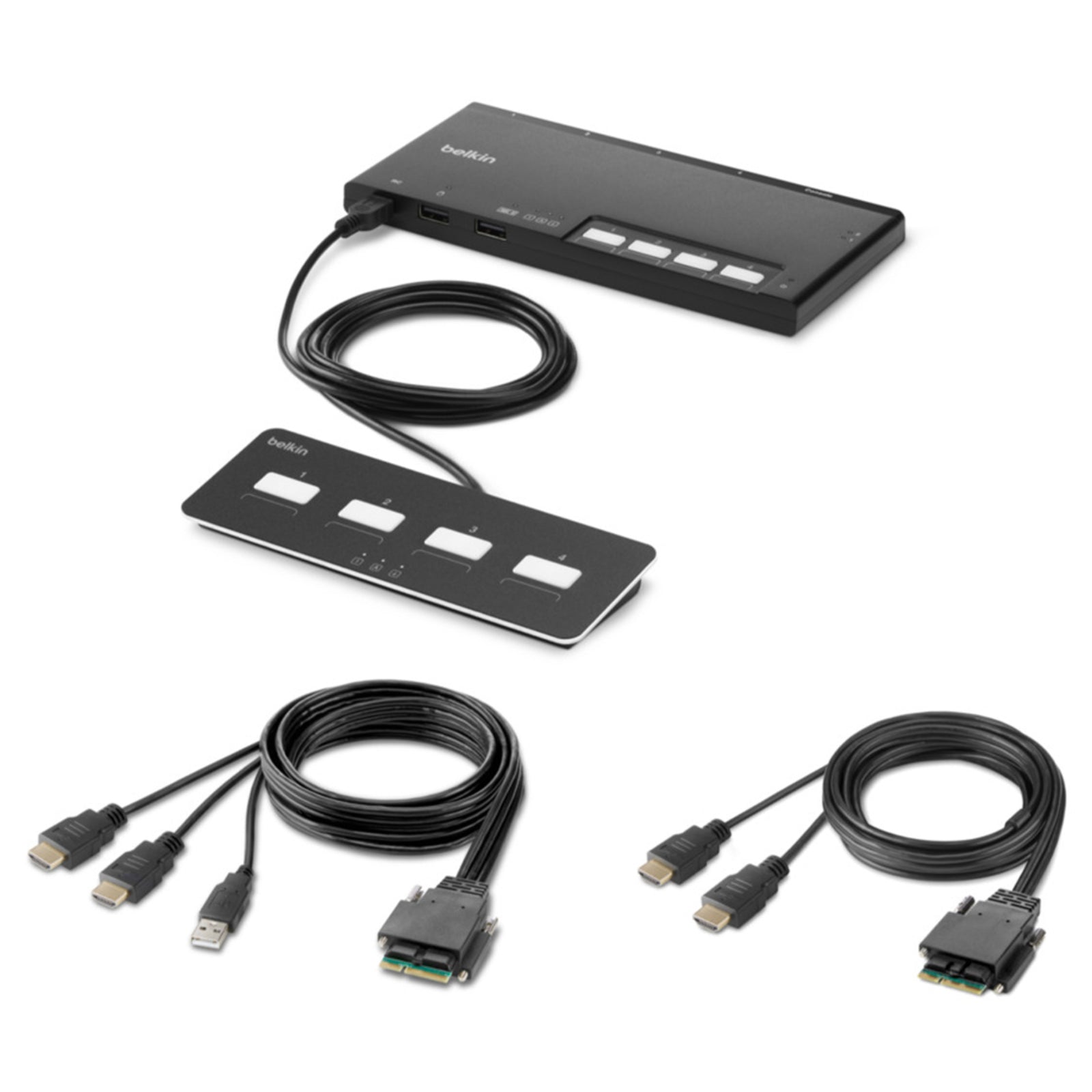

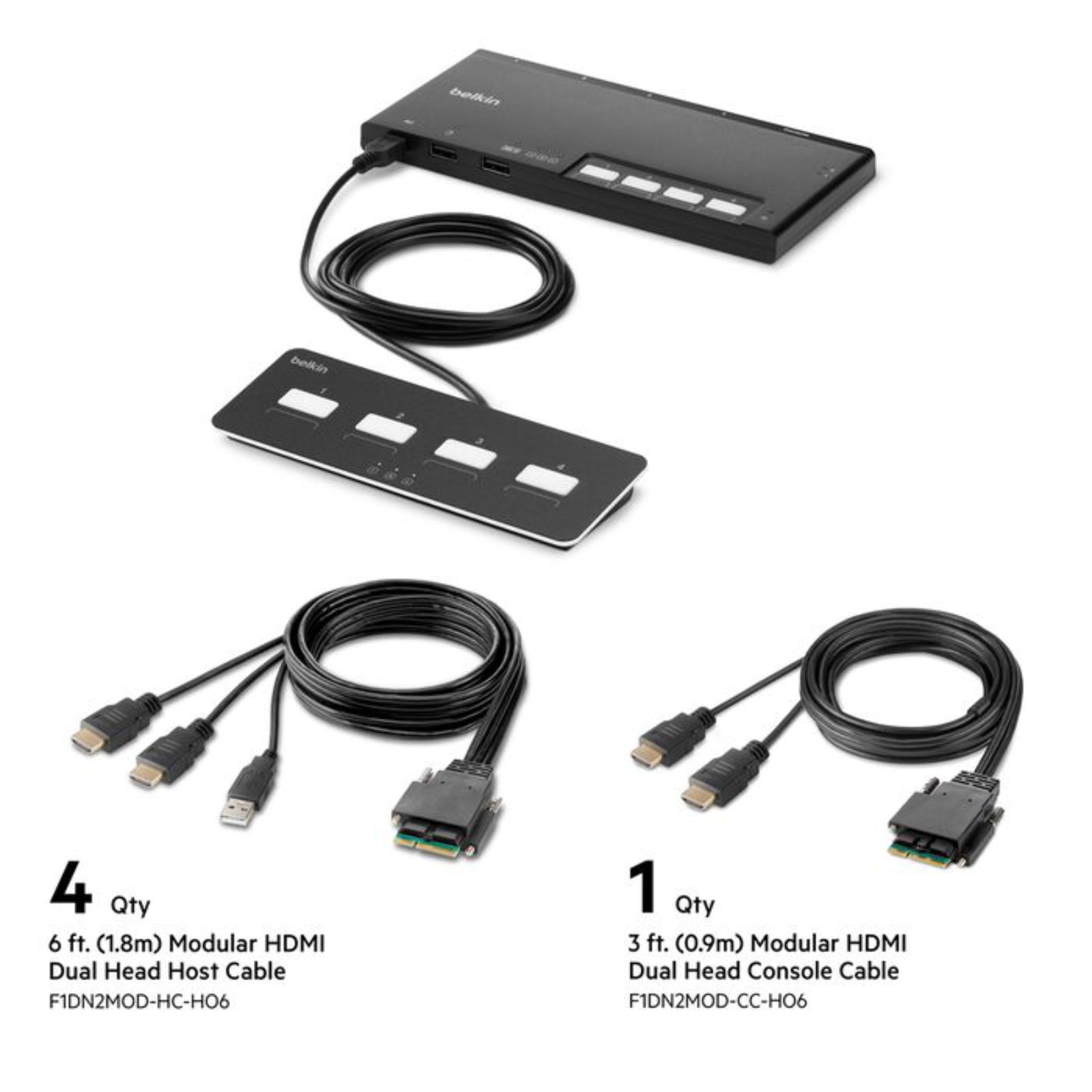

What's in the Box

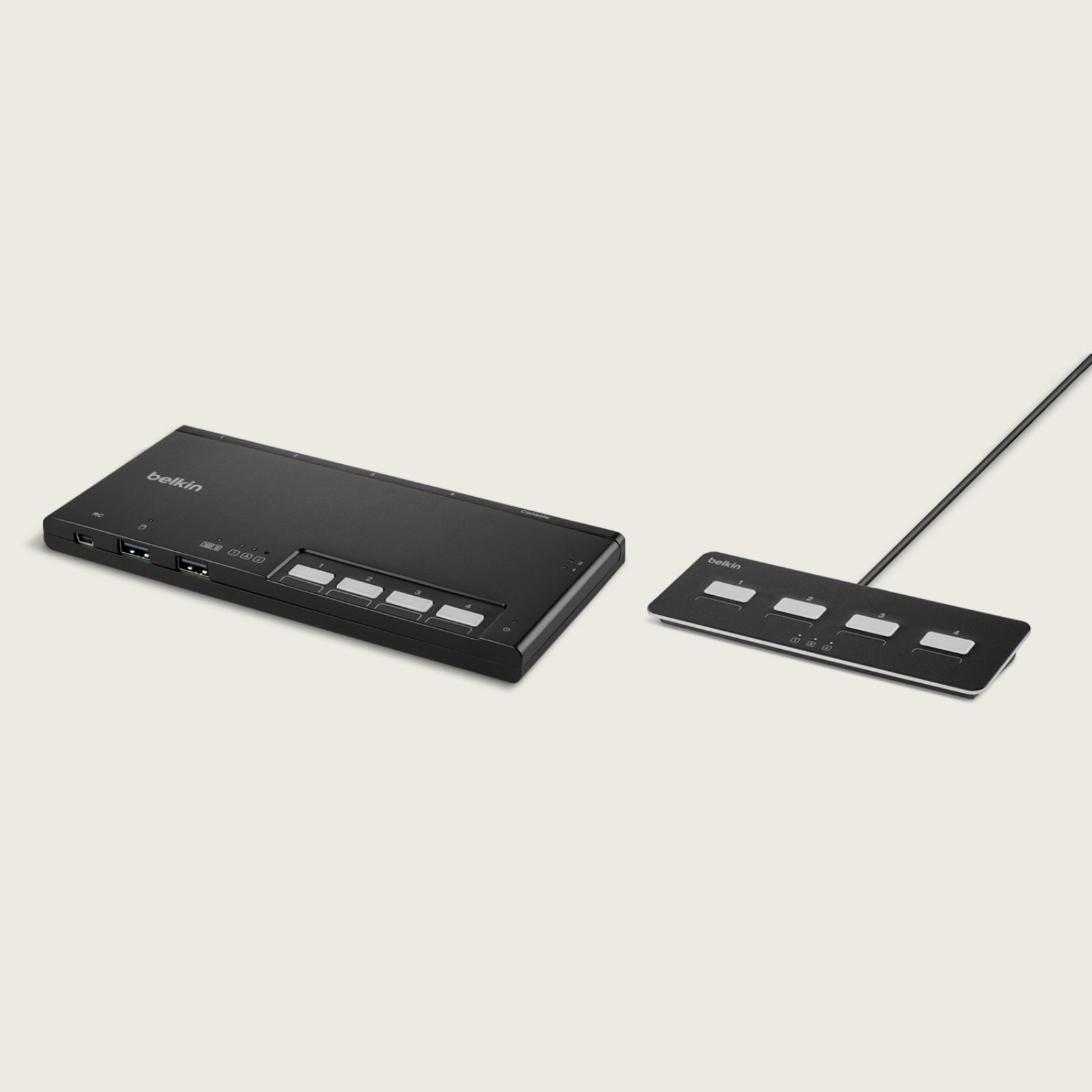

- Belkin F1DN204MOD-BA-4 Modular Secure 4-Port, Dual Monitor Switch Base Unit
- Belkin Modular Secure KVM Series 4-Channel Remote Control
- Belkin 4x F1DN2MOD-HC-H06 HDMI Dual Head Host Cables, 6ft
- Belkin 1x F1DN2MOD-CC-H06 HDMI Dual Console Cable, 6ft
- 12V, 2.5A Universal Power Supply with Worldwide Adapters
- Port Naming and Enclave Coloring Labels
- Quick Start Guide and Compliance Documentation
Specifications.
- Certifications: FCC Class A UL CE RoHS ICES RCM
- Console Ports: 1
- Display Connection: HDMI
- Display Type: HDMI
- External Power: Yes
- Form Factor: Desktop or Remote Mount
- Host Ports: 4
- Housing Type: Diecast Aluminum
- Indicator Light Status: Port Selected EDID Keyboard Mouse CAP Lock NUM Lock SKRL Lock
- Keyboard Input: 1
- Keyboard/Mouse Connections: 2
- Keyboard Type: USB
- KVM Maximum Resolution Supported: 4K@30hz
- Local Console Interfaces: 1, Dual Monitor
- Maximum Resolution: 4K@30hz
- Mouse Input: 1
- Mouse Type: USB
- PC Ports: 4
- Power Rating: 12VDC 2.5A
- Power Supply Included: Yes
- Power Supply Type: External
- Remote Control Included: Yes
- Supported Audio Formats: Digital via Video Connection
- Supported Video Formats: HDMI
- TAA Compliant: Yes
- Input Voltage (AC): 100-240
- AC Plug Style: Worldwide Interchangable Mains Connector
- Ports: 4
