Winmate 23.8" (24") Industrial Touchscreen Panel PC N4200, 8GB, 128GB SSD, Wi-Fi

Winmate 23.8" (24") Industrial Touchscreen Panel PC N4200, 8GB, 128GB SSD, Wi-Fi

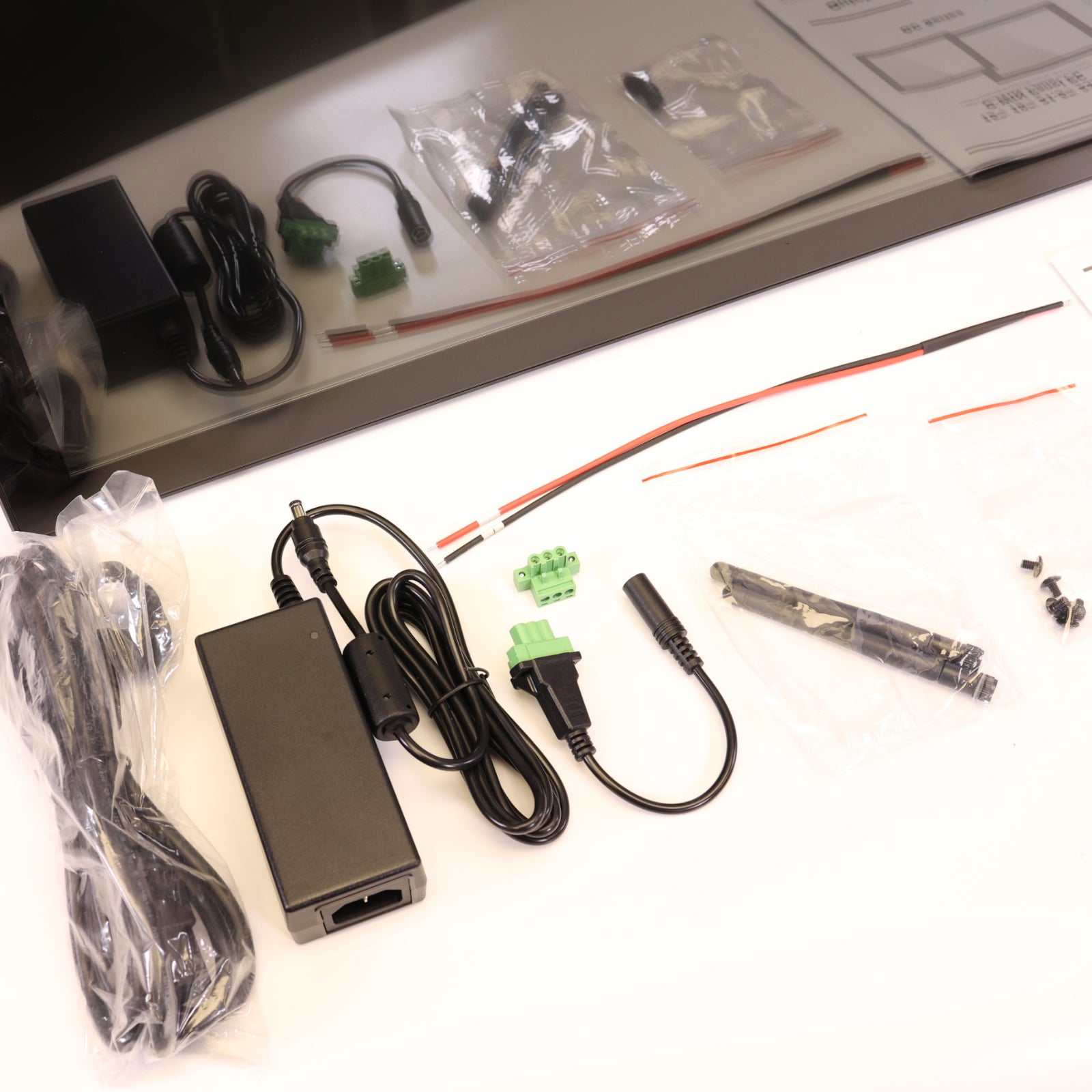

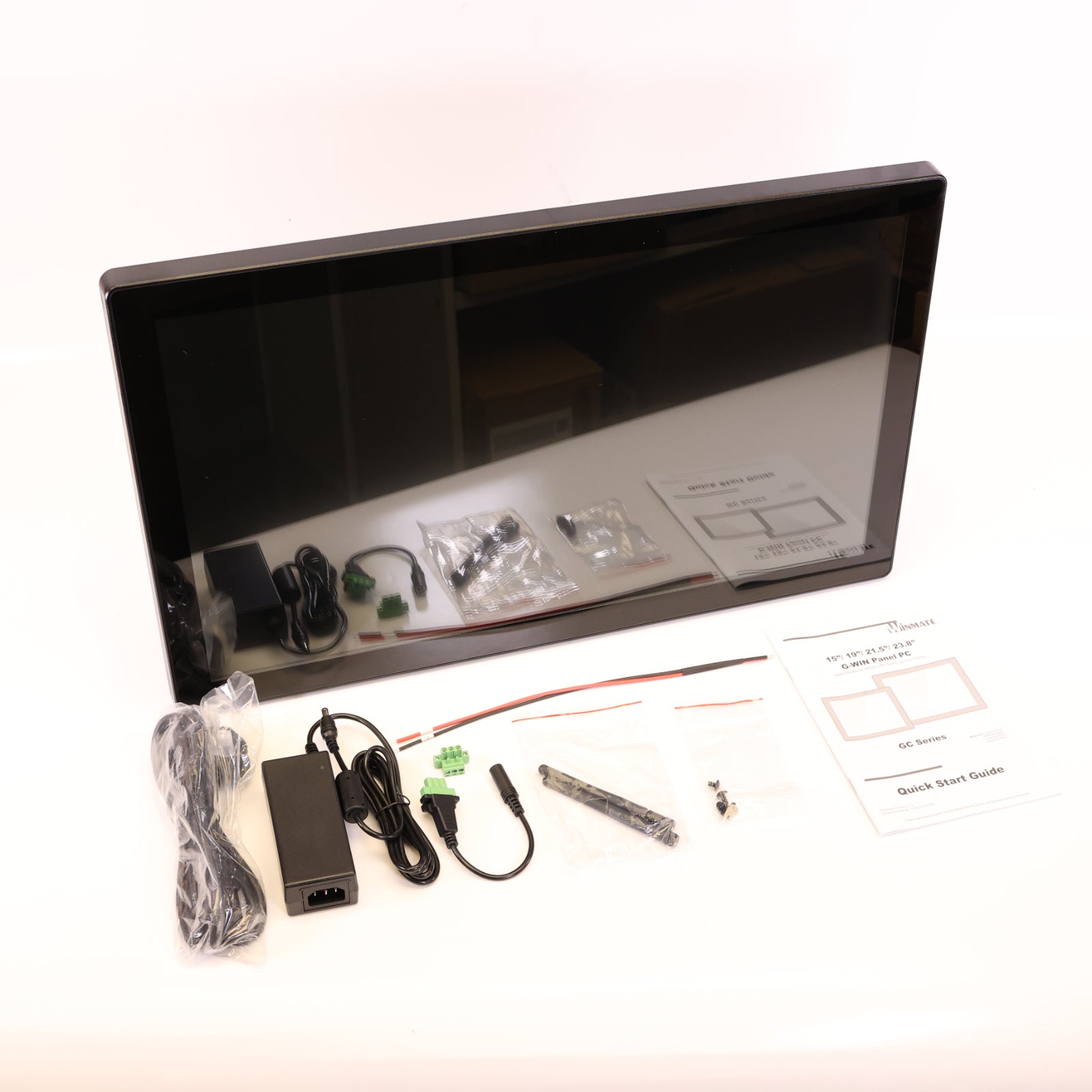

Condition: This item is brand new and unused (aged stock), supplied in the original box with all original accessories (as shown in the photo 4 & 5).

The box may be a little bit tatty from storage / shipping (minor dents / label marks etc), but this will not affect the contents at all.

PLEASE NOTE: This is a 'Panel PC' which is intended for use in industrial / retail applications, it is not really intended for use as a stand-alone desktop PC since it has limited I/O and an IOT Enterprise version of Windows 10.

It does NOT include a stand, keyboard or mouse in the box.

Part/Model Number: W24IP3S-GCA2  /  W24IP3S-GCA2-8G-128G-WIFI  /  W24IP3SGCA2

Warranty: This item is sold with a 12 Month Return to Base (RTB) warranty.

Item details/specification.

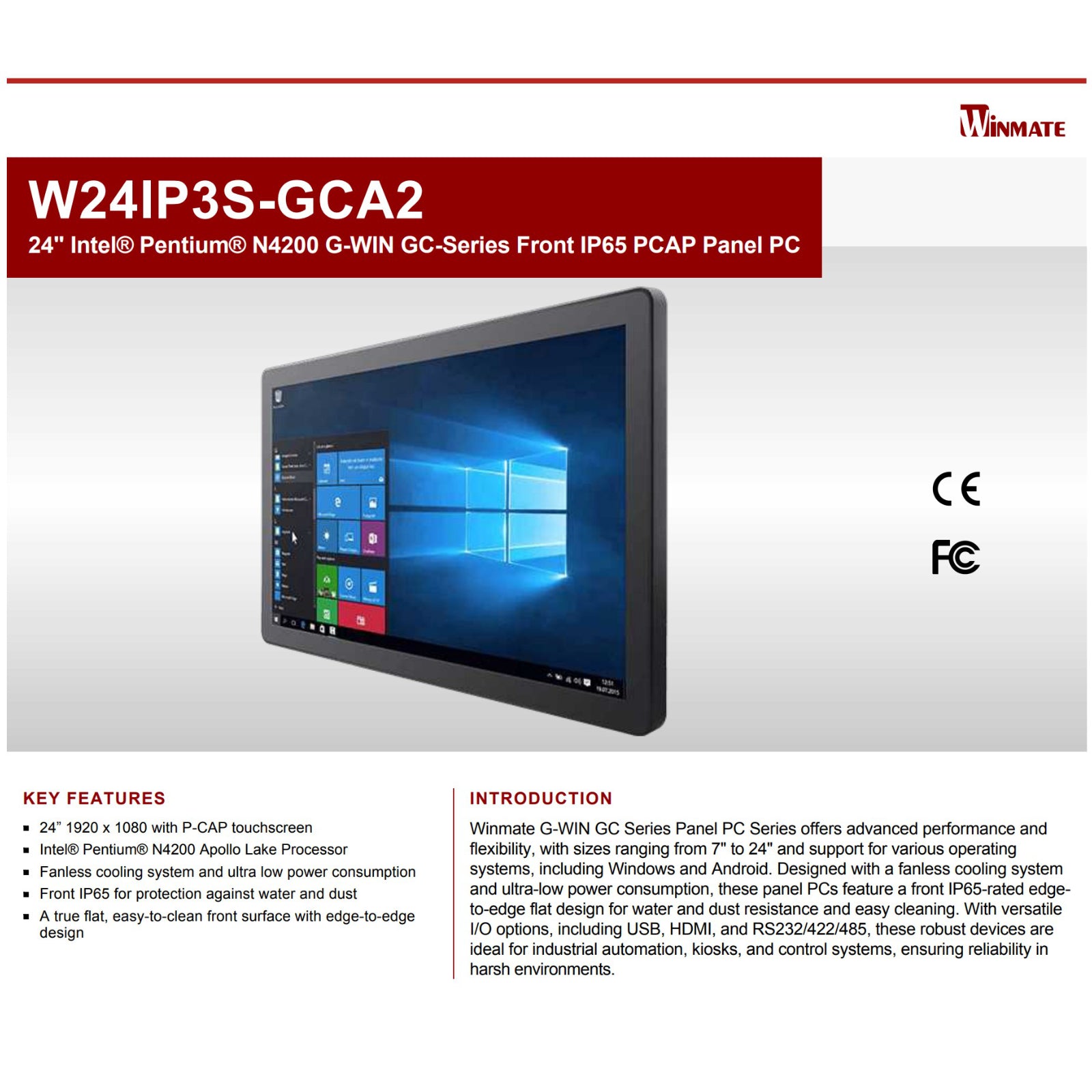

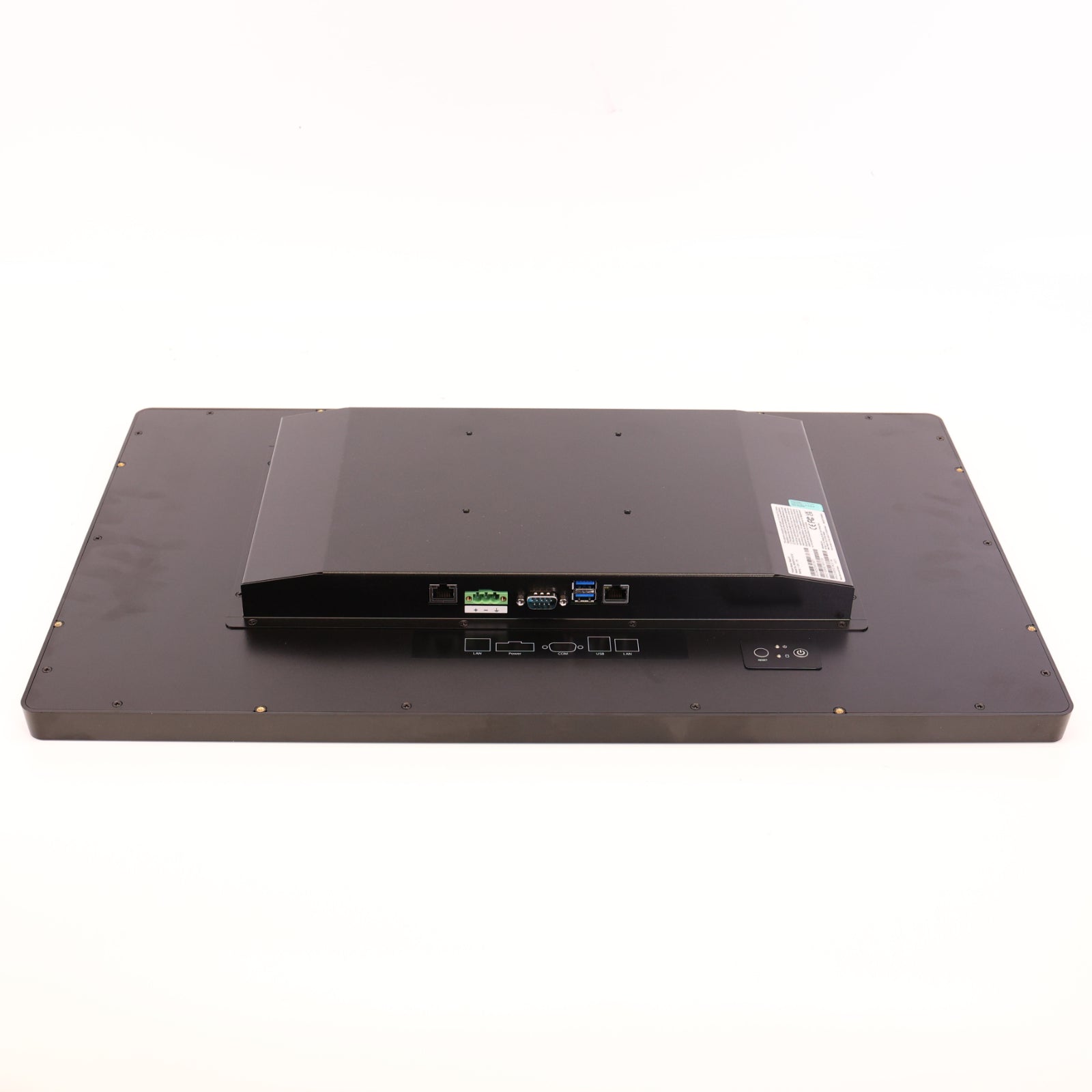

The Winmate W24IP3S-GCA3 is a 23.8" touchscreen Panel PC powered by Intel Pentium N4200 Apollo Lake processor. This panel PC consists of 1920 x 1080 resolution and 250nits brightness whilst also being front IP65 protected. This panel PC contains multiple I/O including 1 x serial, 2 x USB and 1 x LAN.

These robust devices are ideal for industrial automation, kiosks, and control systems, ensuring reliability in harsh environments.

Features

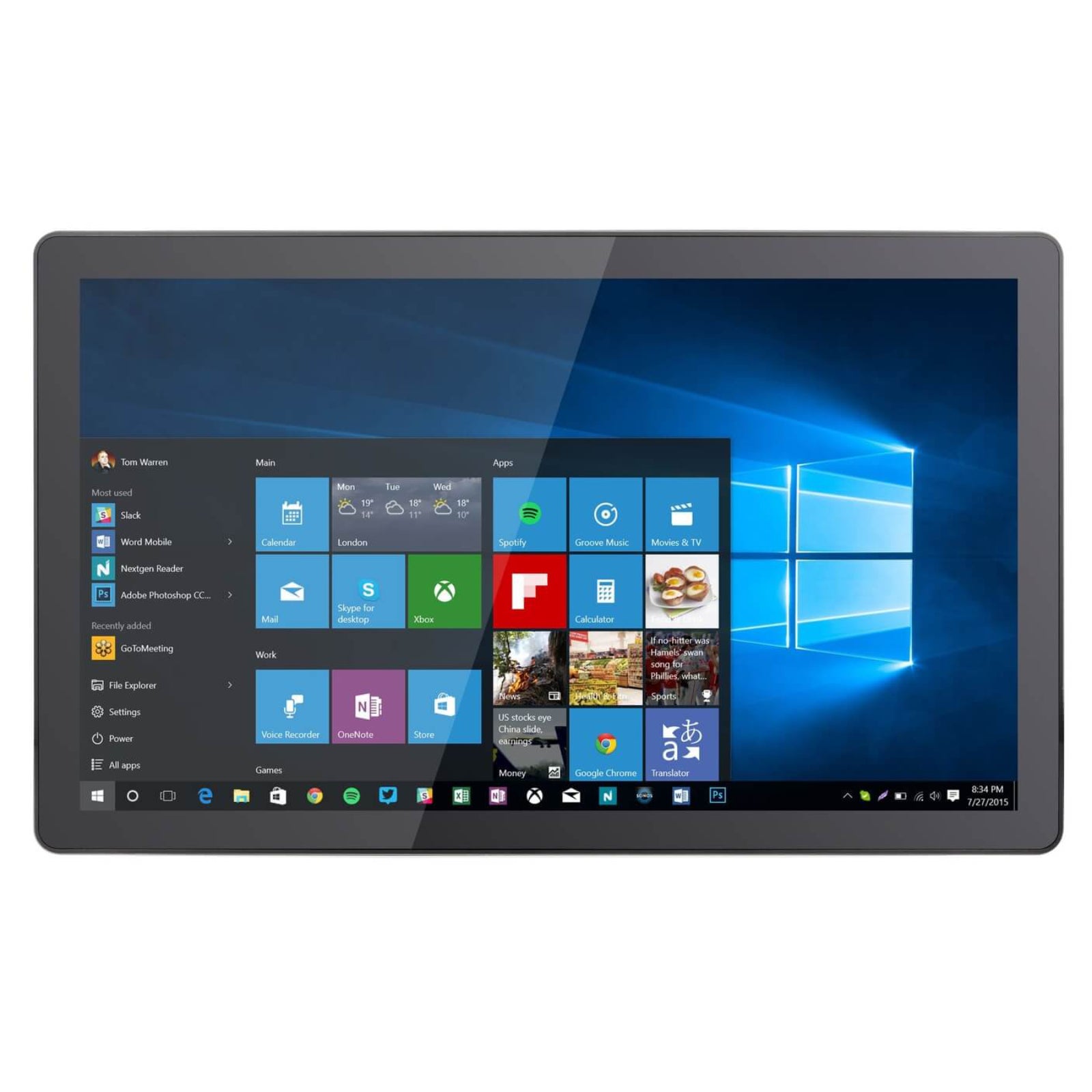

• 23.8″ 1920 x 1080 PCAP touchscreen
• Intel Pentium N4200 Apollo Lake Processor
• Fanless cooling system and ultra low power consumption

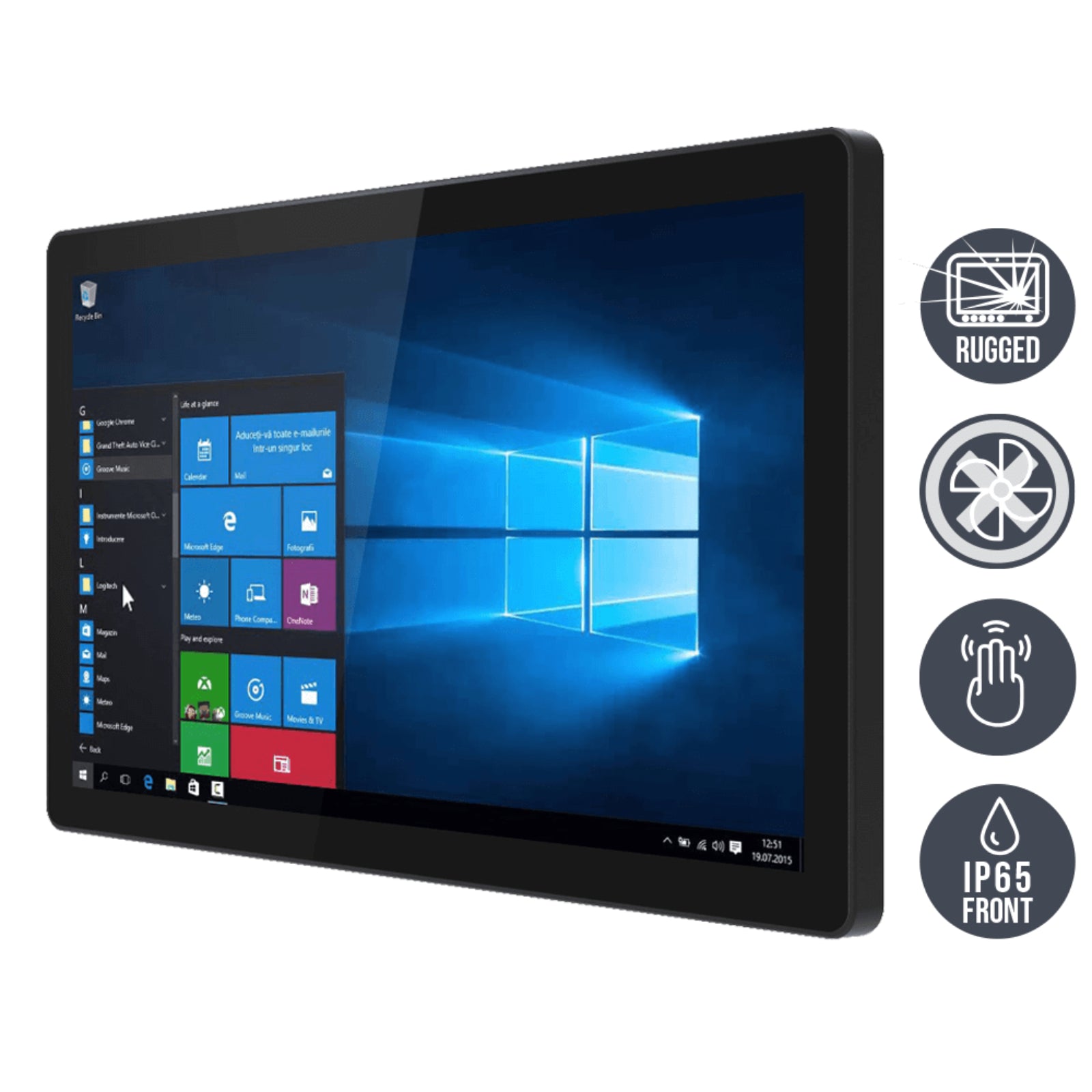

• Front IP65 water and dust proof

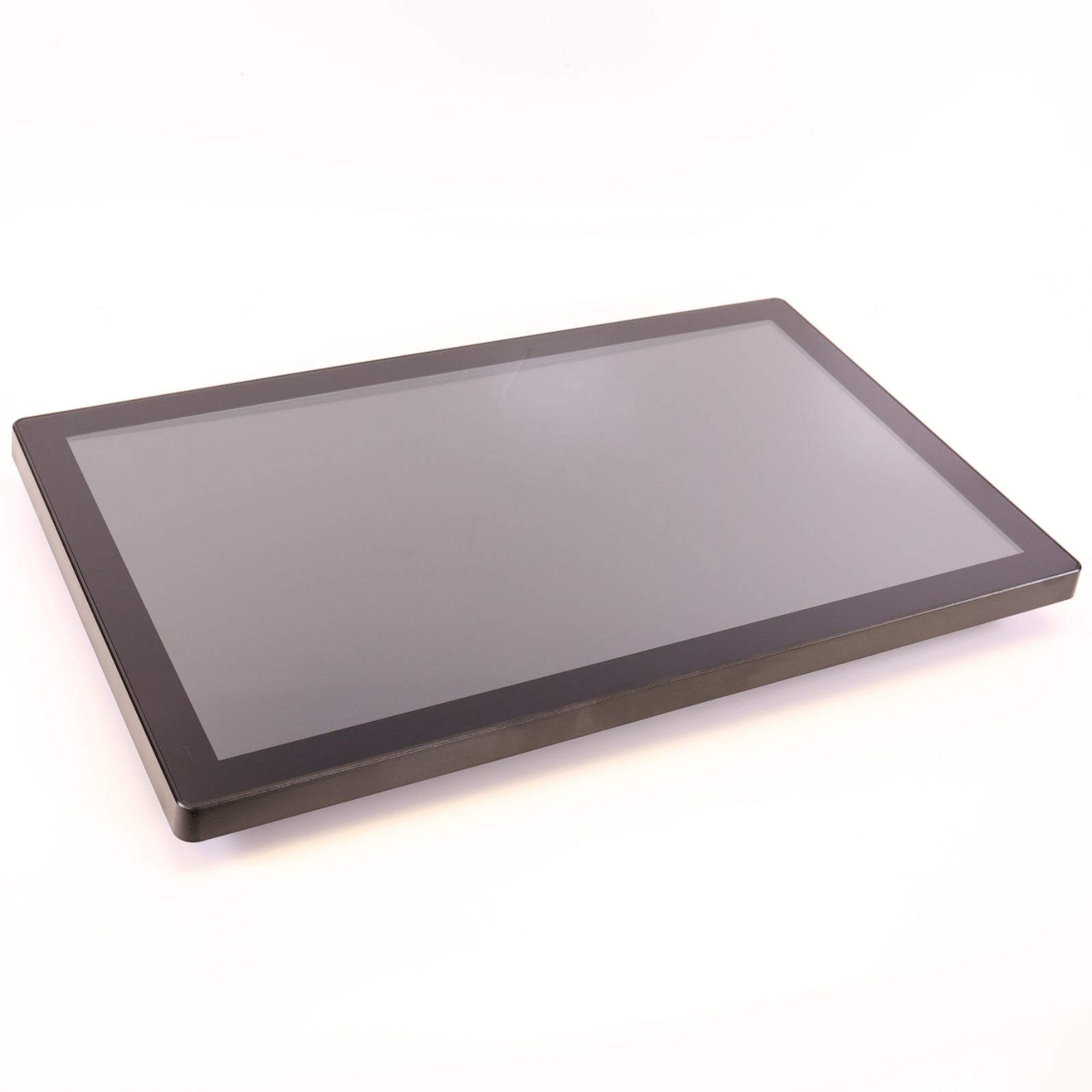

• A true flat, easy-to-clean front surface with edge-to-edge design

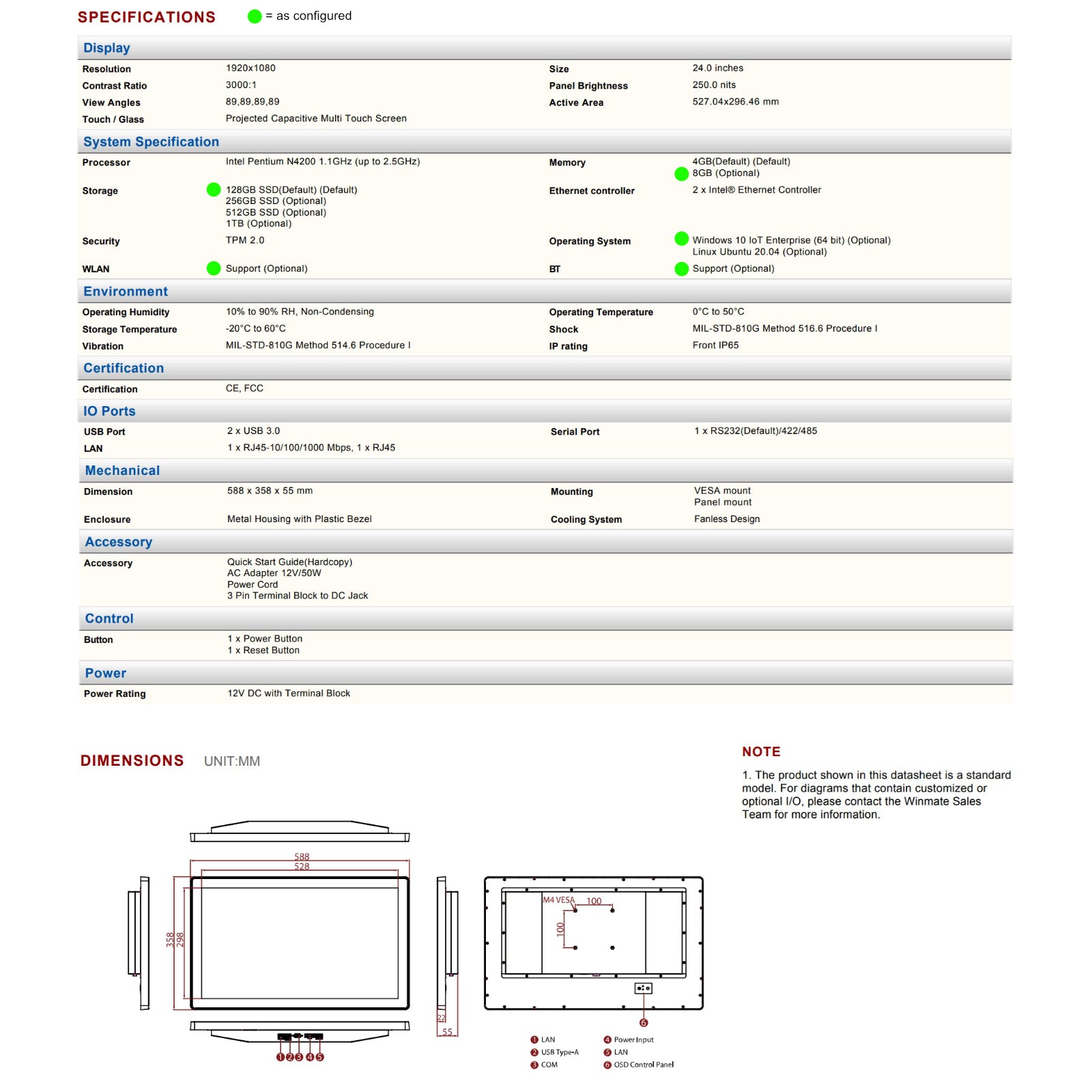

Specifications

• Screen Size: 23.8” TFT
• Screen Resolution: 1920 x 1080 (Full HD)
• Contrast Ratio: 3000 : 1 (typ.)
• Panel Brightness: 250 cd/m (typ.)
• Viewing Angle: -89~89(H);-89~89(V)
• Touch Screen: Projected Capacitive Multi-Touch
• Maximum Colours: 16.7M
• Processor: Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
• Memory: 8GB DDR3L 1866 SO-DIMM
• Storage: 128GB M.2 SSD
• Operating System: Windows 10 IoT Enterprise

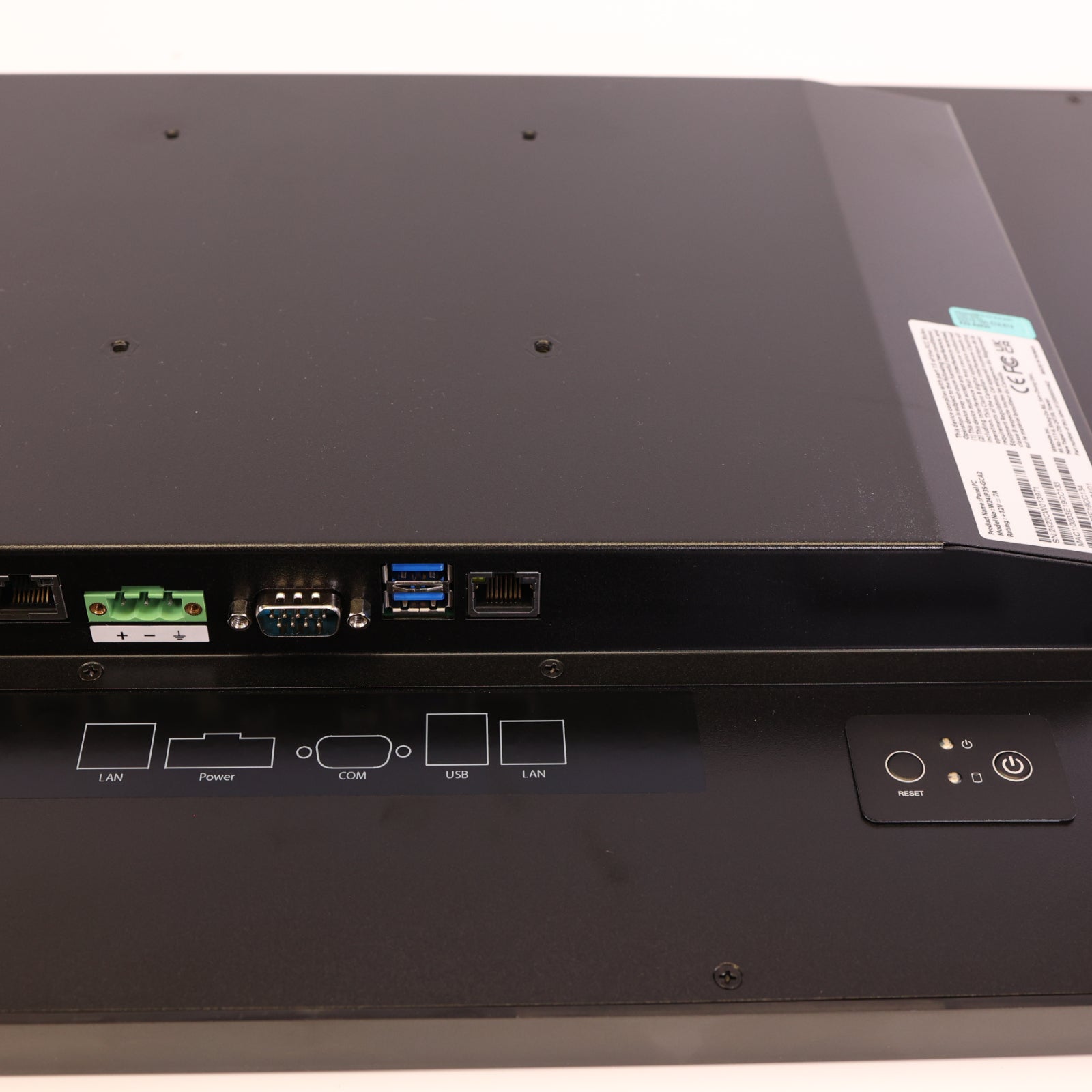

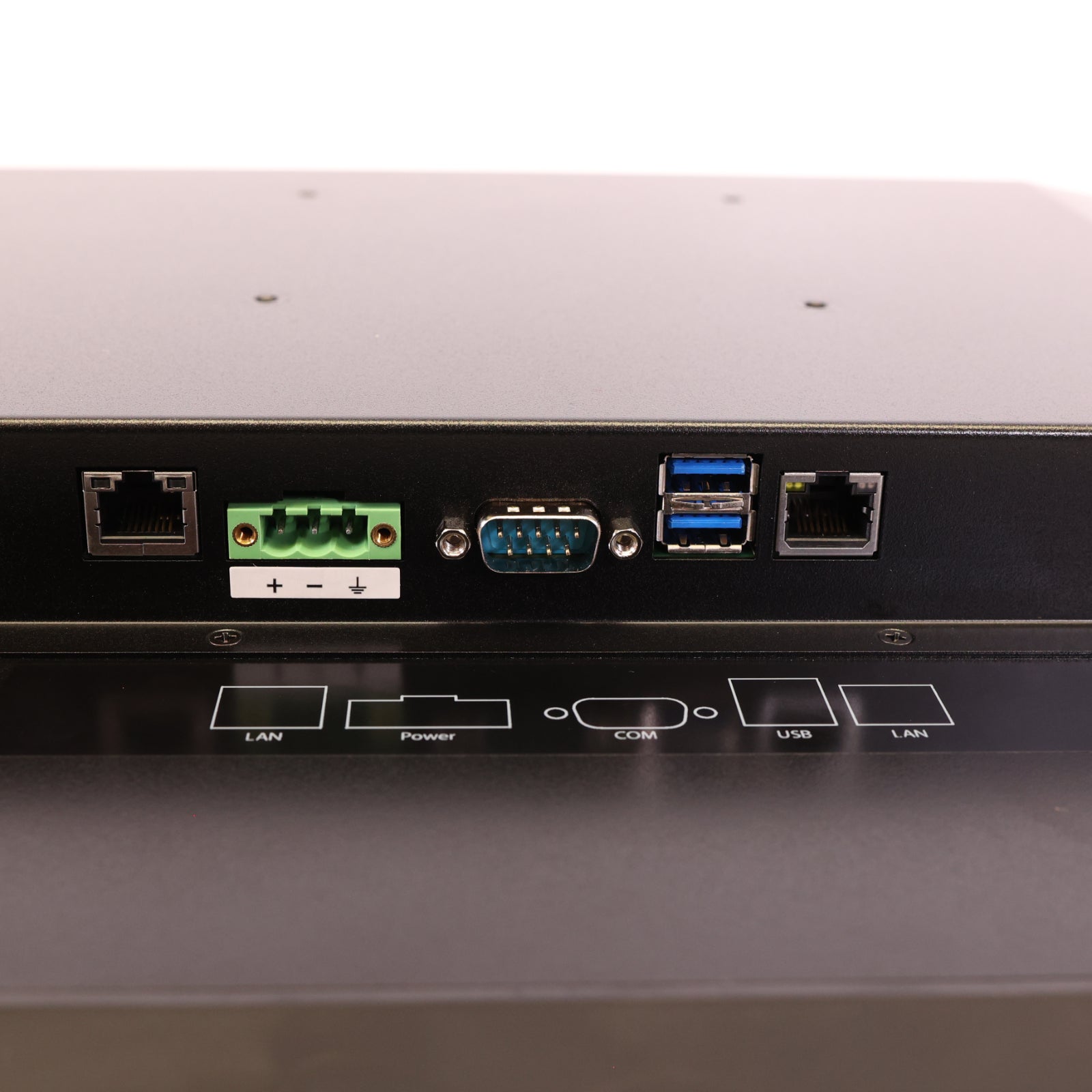

• LAN: Dual Intel® I210-AT GbE LAN
• Serial: 1 x RS-232/422/485
• USB Port: 2 x USB 3.0
• Ethernet: 1 x RJ-45-10/100/1000 Mbps, 1 x RJ-45
• Wi-Fi: Yes
• Bluetooth: Yes
• Operating Temperature: 0 °C to 50 °C
• Operating Humidity: 10% to 90% (non-condensing)
• Mounting: VESA Mount (100x100mm)
• Dimension (W x H x D): 588 x 358 x 55 mm
• IP Rating: Front IP65
• Security Support: Trusted Platform Module (TPM 2.0)
• Power Input: 12V DC in
• Power Consumption: 29 W
