Vogel's PFW 6850 Full Motion Low Profile TV Wall Mount Bracket Heavy Duty PFW6850

Vogel's PFW 6850 Full Motion Low Profile TV Wall Mount Bracket Heavy Duty PFW6850

Condition: This item is brand new and unused, still factory sealed in the original box with all original accessories.

Part/Model Number: PFW 6850  /  PFW6850  /  7368500

Warranty: This item is sold with the Manufacturer warranty.

Item details/specification.

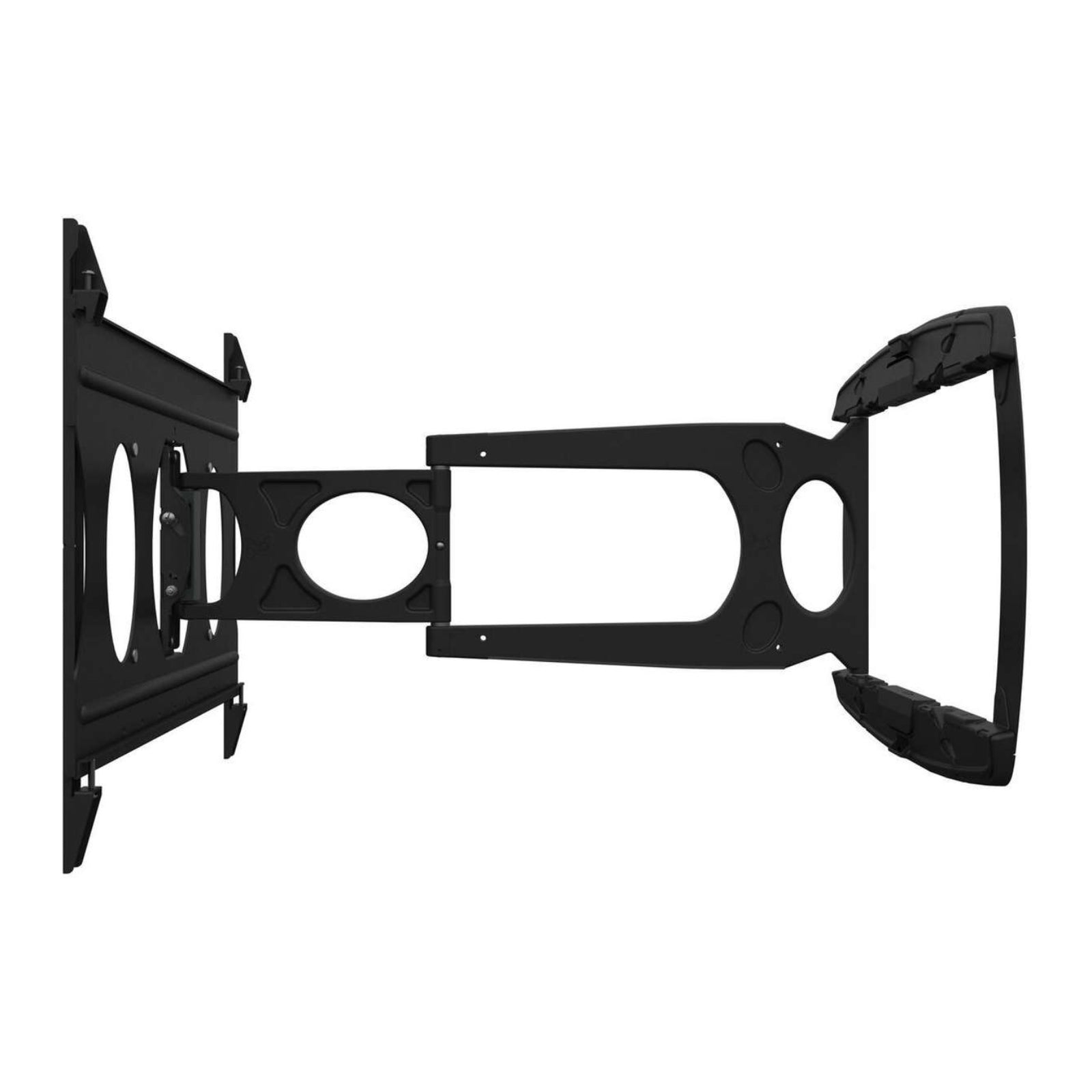

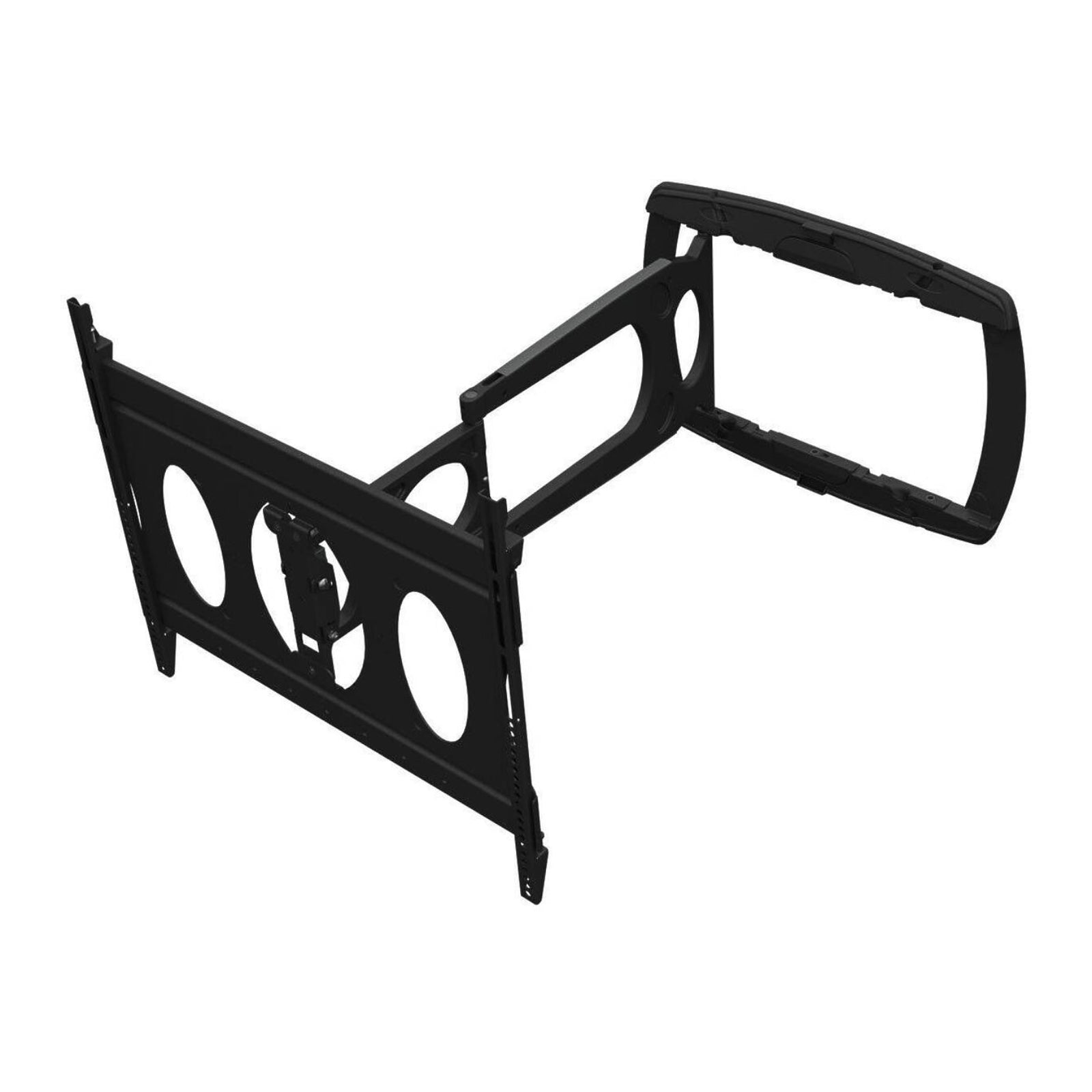

The PFW 6850 is an ultra slim wall mount for displays up to 40kg / 88 lbs. that provides two options for the swing arm placement, allowing the mount to swing out from the left or right, based on the installation requirements.

The swing-out arm extends 76 cm from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. The lightweight aluminium mount retracts smoothly and easily to a very thin 3.8 cm from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.

Key Features

• VESA Up to 100x100 to 600×400
• Min. Depth 38mm
• Max. Depth 749mm
• Turn up to 180°
• Tilt up to 15°

Specifications.

• Product Group: Vogel's Swing Out Monitor / TV Arm
• UPC / EAN: 8712285323362
• Screen Size: 42 – 65″
• Max Load: 40.00kg.
• VESA Mount Points: 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.
• Bracket Tilt: 0–15°
• Colour: Black
• Number of pivot points: 3
• Turn: Up to 180°
• Tilt: Tilt up to 15°

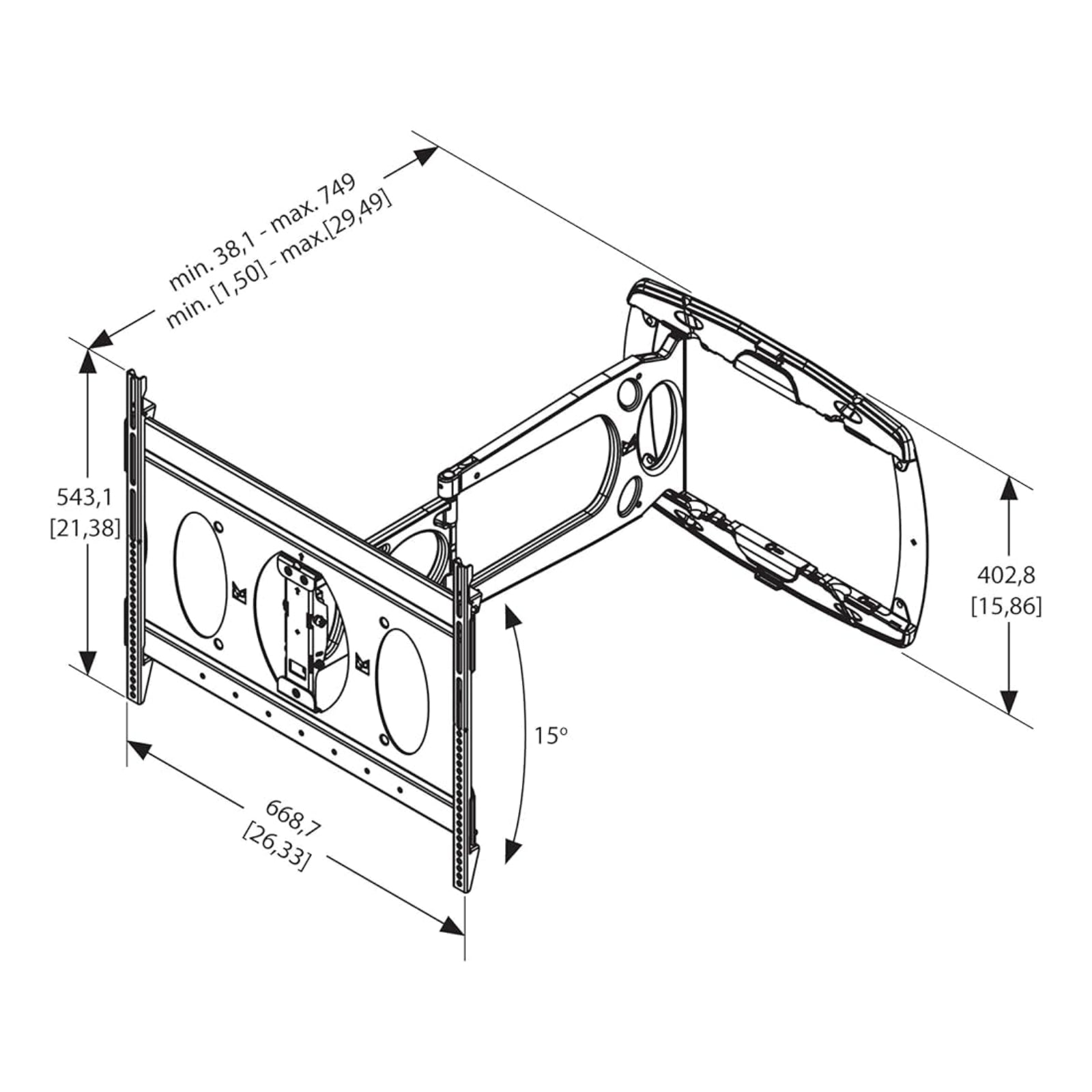

• Min Depth (Closed): 38mm
• Max Depth (Open): 749mm
• Orientation: Landscape
• Lock options: No lock
• Levelling function: Post-installation horizontal levelling
• Number of arms: 2

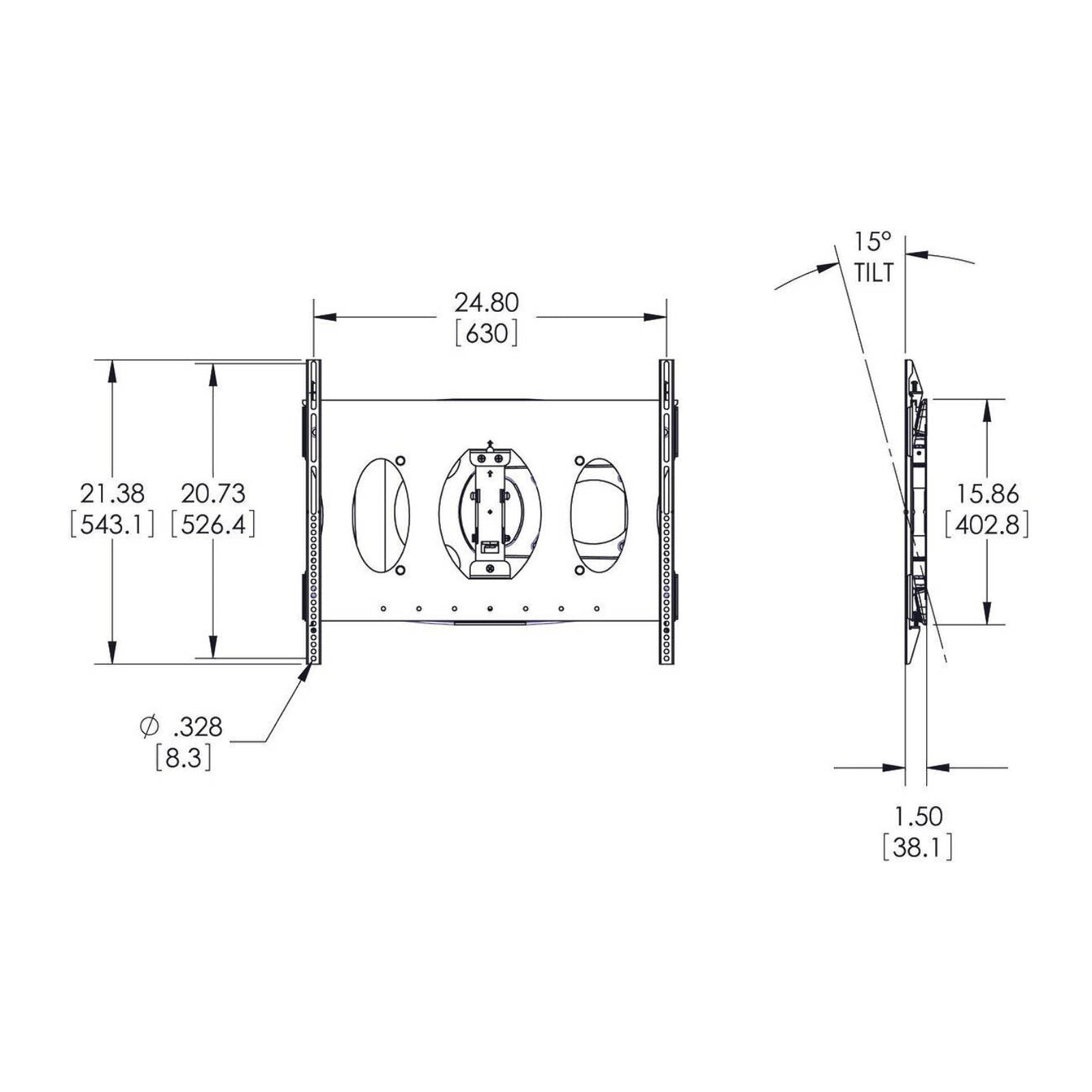

• Horizontal Hole Pattern: 100-630mm
• Vertical Hole Pattern: 100-526mm
